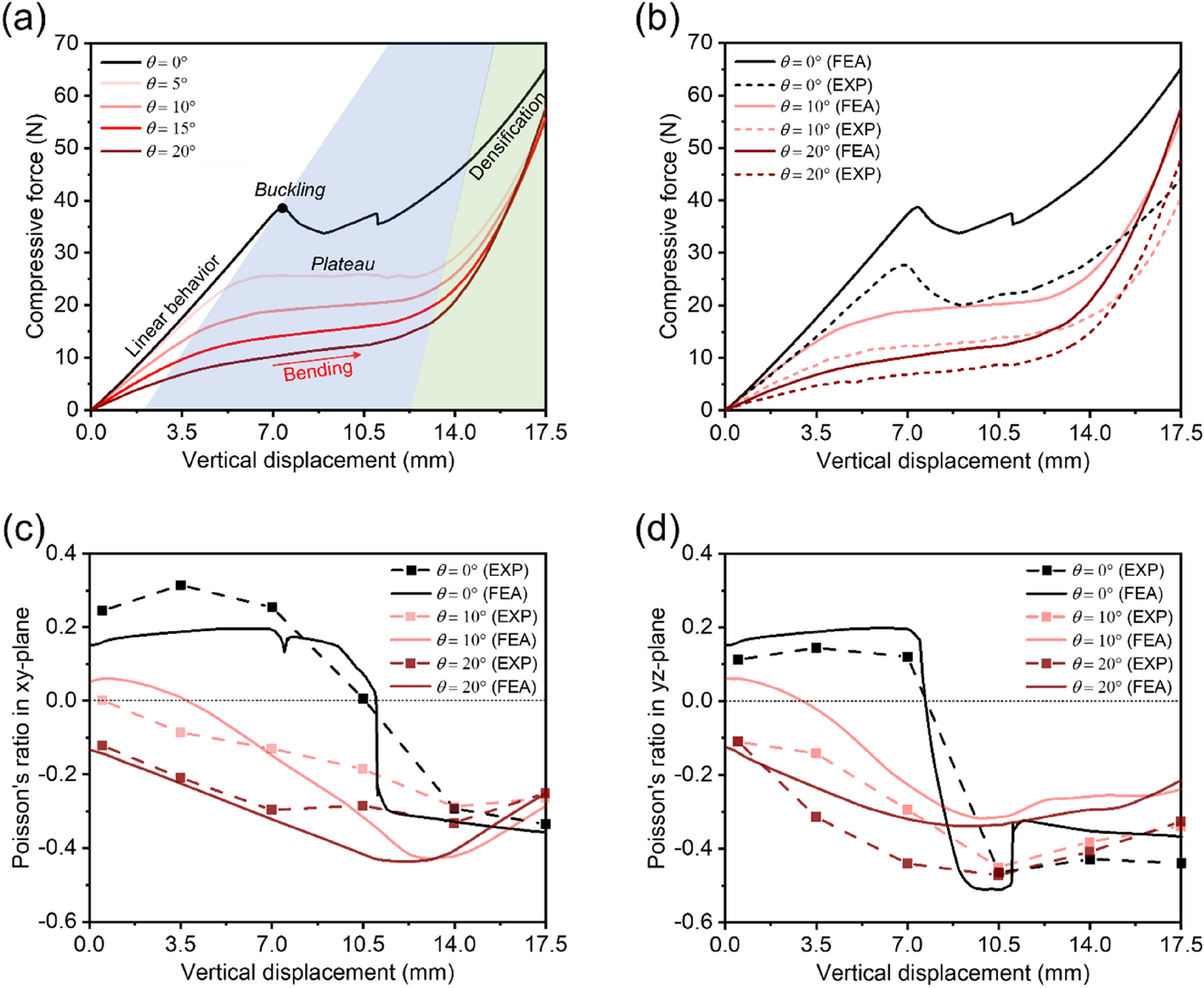

Figure 3

Variations of mechanical properties with respect to \({\varvec{\theta}}\): (a) Force–displacement curves of RPAS-0, -5, -10, -15, and -20. Comparison of (b) force–displacement, (c) Poisson’s ratios in xy-plane, and (d) Poisson’s ratios in yz-plane obtained from the numerical simulations and experiments.
