Figure 11

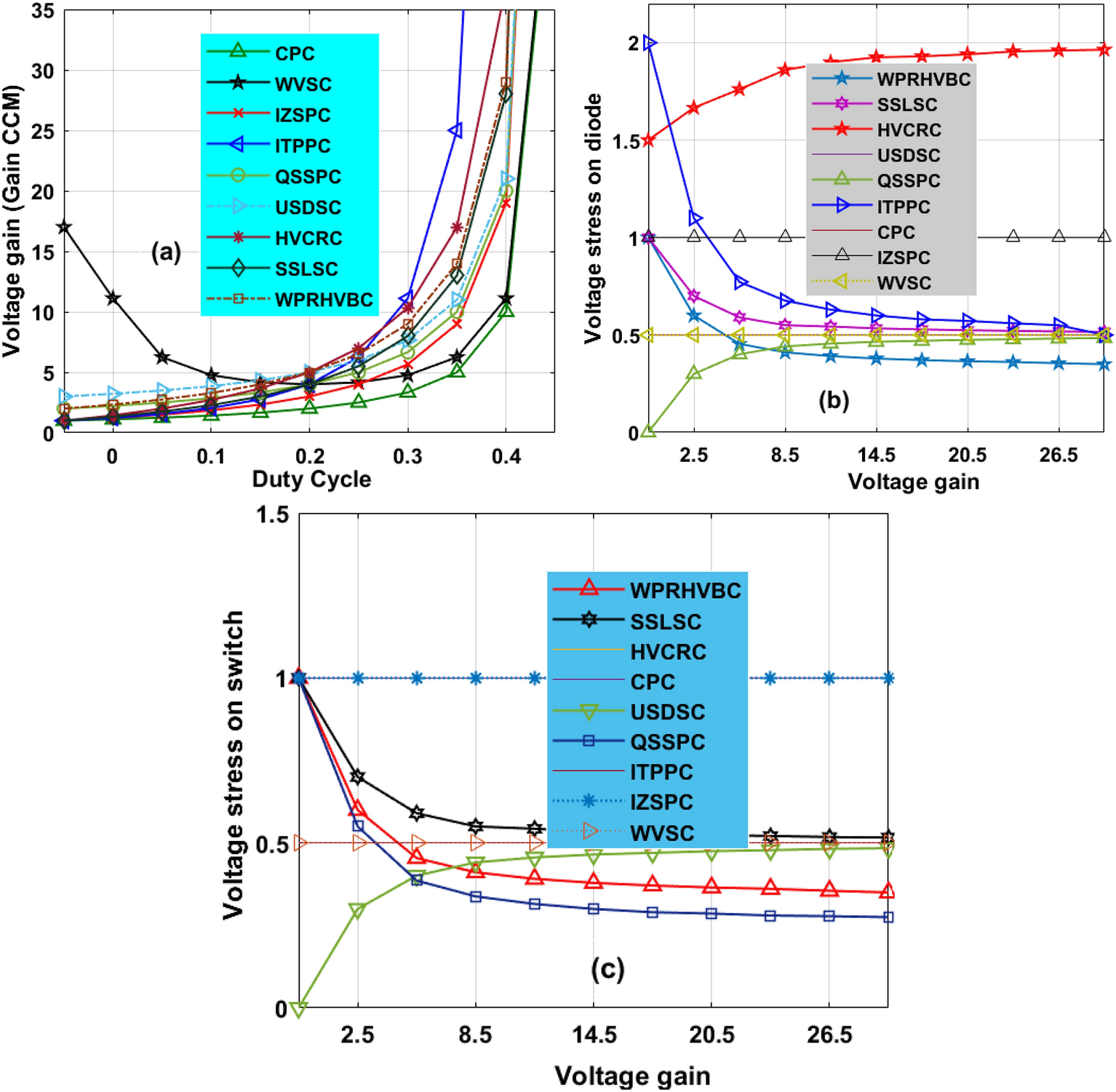

(a) Change in VCR by varying the duty, (b) Change in voltage of diode with VCR, plus (c) Change in voltage of switch with VCR.
Figure 11 | Scientific Reports
(a) Change in VCR by varying the duty, (b) Change in voltage of diode with VCR, plus (c) Change in voltage of switch with VCR.
