Figure 3 | Scientific Reports

Figure 3

From: Migratory movements of fin whales from the Gulf of St. Lawrence challenge our understanding of the Northwest Atlantic stock structure

Figure 3

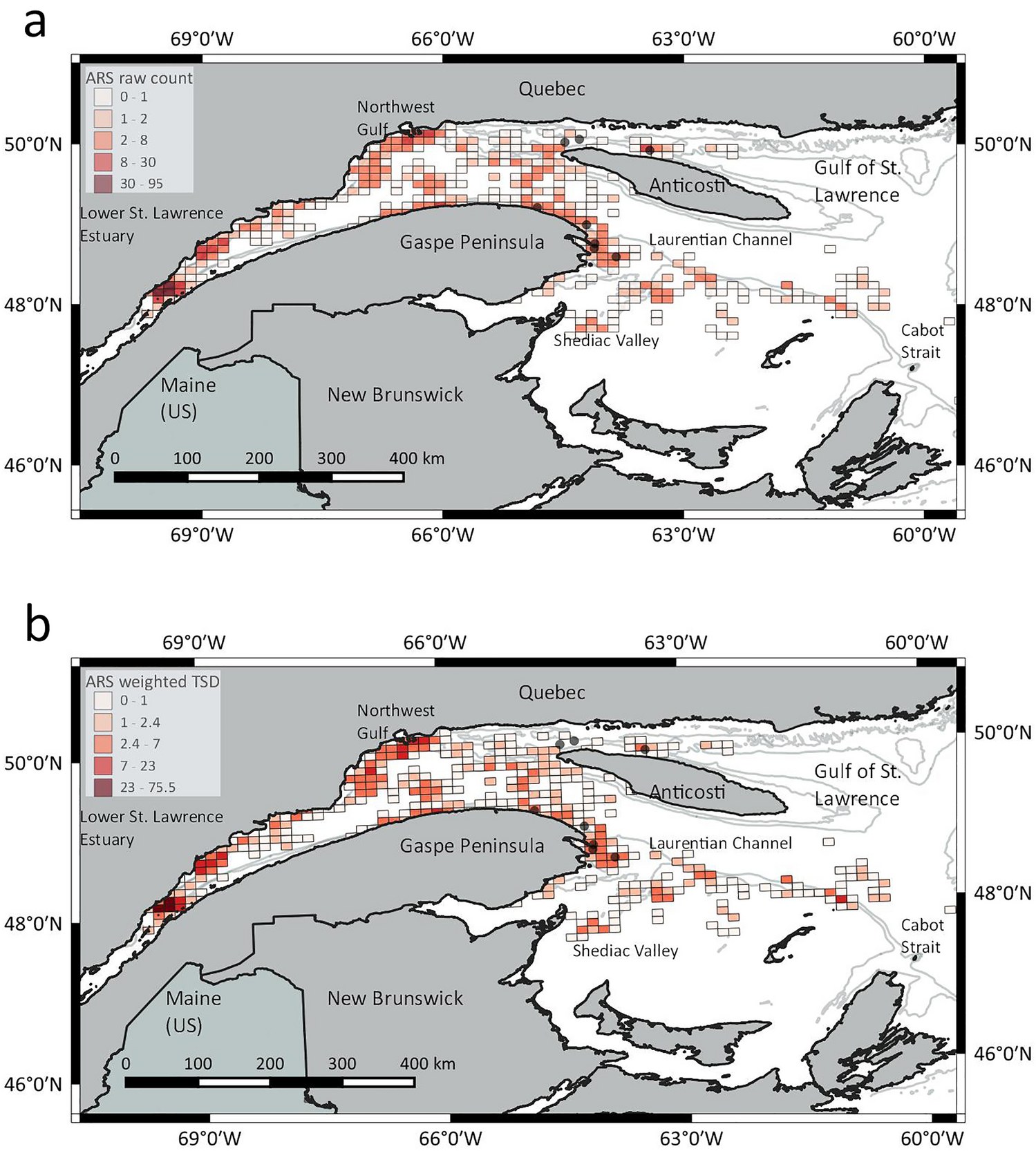

Total area-restricted search (ARS) behavior predicted in a 10*10 km grid over the Gulf of St. Lawrence, using all 28 tags and a 36-hour gap. Representation is based on (a) raw counts and (b) the sum of ARS states weighted for the time since deployment (TSD). The gray dots represent the 8 summer deployment locations. The 20 fall deployments occurred in a very small area of the Lower Estuary and would mask the grid cells. The small scale Fig. 4 of the Estuary shows them.
