Figure 1
From: Developing centrifugal force real-time digital PCR for detecting extremely low DNA concentration

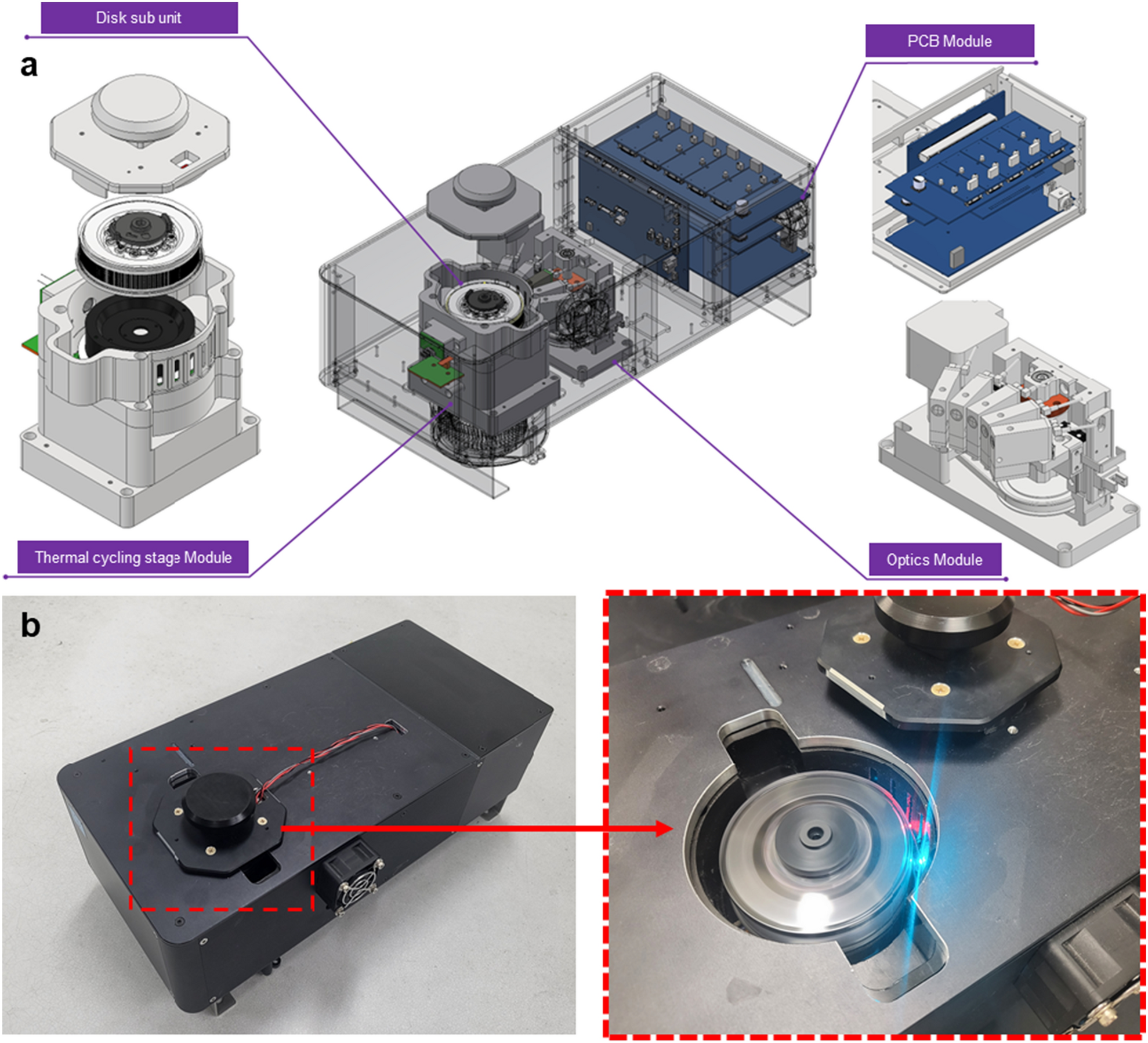

(a) Schematic of the digiQuark system with thermal control, fluorescent optical modules, and PCB modules. (b) Photographs of the implemented equipment and its behavior.
