Figure 8
From: Research on the influence of pits on the propagation law of explosion shock waves

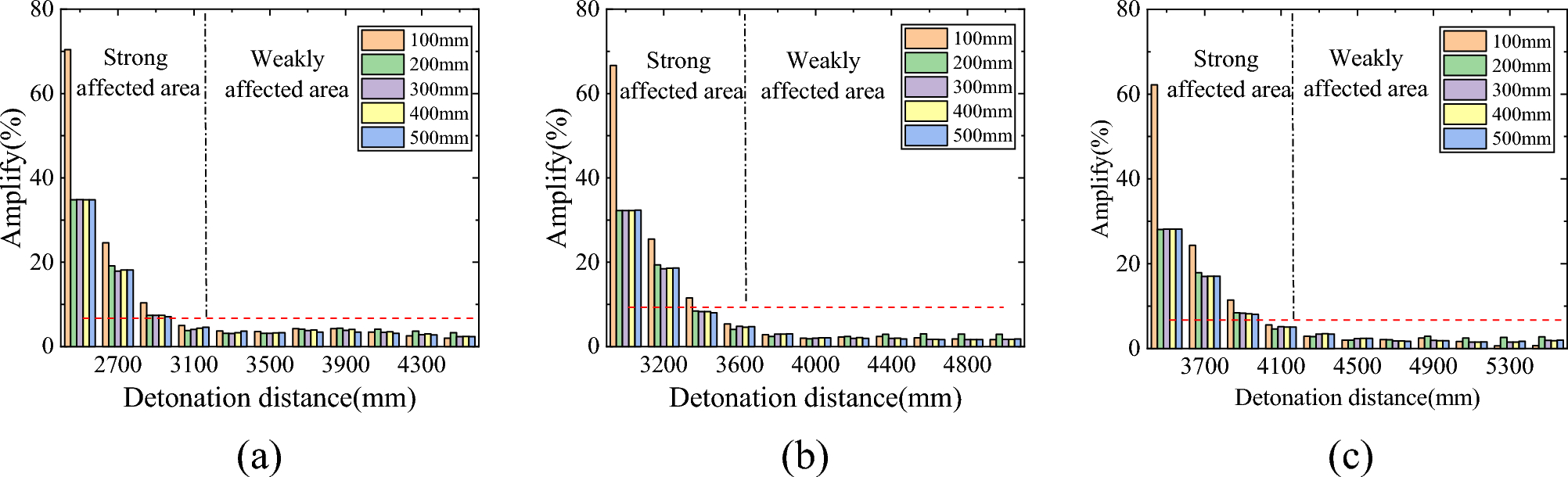

The amplitude of overpressure peak at each depth of pit relative to no pit. (a) Burst center distance 2000Â mm, (b) Burst center distance 2500Â mm, (c) Burst center distance 3000Â mm.
