Figure 3 | Scientific Reports

Figure 3

From: The tardigrade-derived mitochondrial abundant heat soluble protein improves adipose-derived stem cell survival against representative stressors

Figure 3

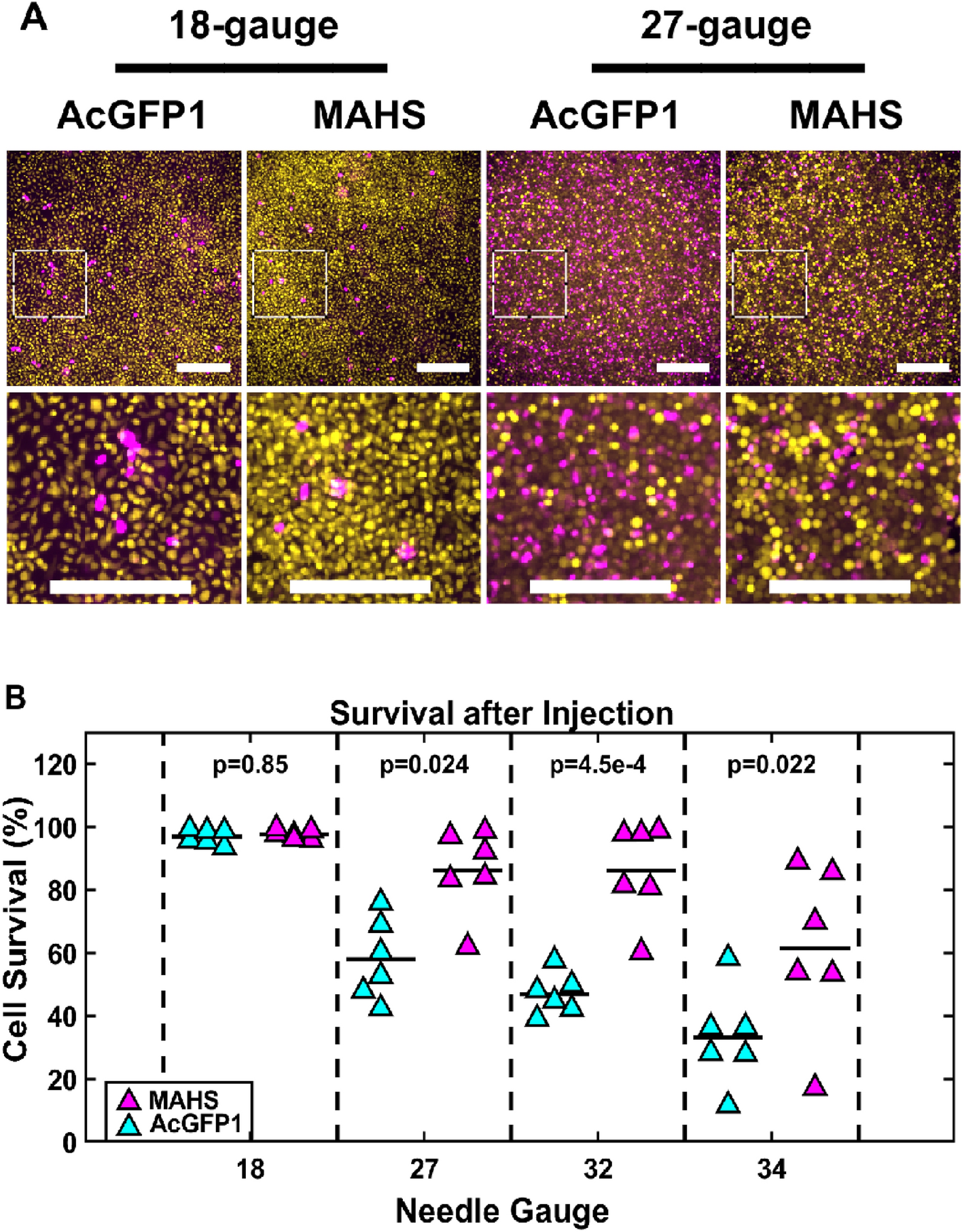

Injection shear stress. (A) Maximum projections of live (Calcein-AM, yellow) and dead (EthD-III, magenta) AcGFP1- and MAHS-expressing ASC52telos following injection through various needle gauges. Scale bars are 300 µm. (B) Quantification of cell survival in AcGFP1- (cyan) and MAHS-transgenic (magenta) ASCs following injection through various needle gauges (2-way ANOVA, Tukey’s HSD, n = 6). Denoted p-values indicate pairwise difference in cell survival between the genotypes at each specific needle gauge.
