Figure 7

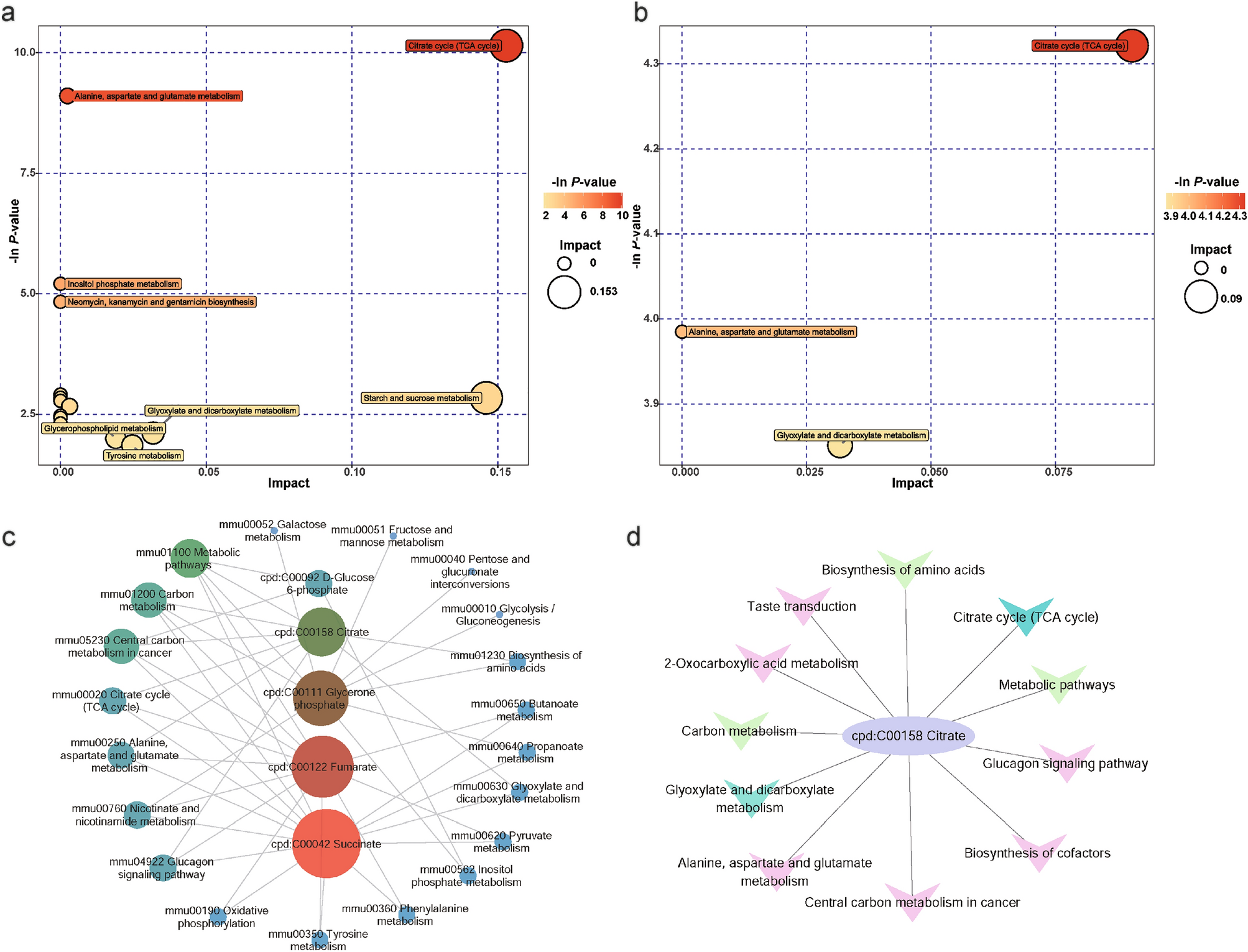

The TCA cycle is a crucial pathway regulated by TUG1 in the activation of microglia. (a) Bubble plot of pathway enrichment of differential metabolites between the control and LPS/IFN-γ group. (b) Bubble plot of pathway enrichment of differential metabolites between the LPS/IFN-γ group and TUG1KO induced with LPS/IFN-γ group. (c) Pathway enrichment plot of differential metabolites between the control and LPS/IFN-γ group. (d) Pathway enrichment plot of differential metabolites between the LPS/IFN-γ group and the TUG1KO induced with LPS/IFN-γ group.
