Figure 5
From: ML for fast assimilation of wall-pressure measurements from hypersonic flow over a cone

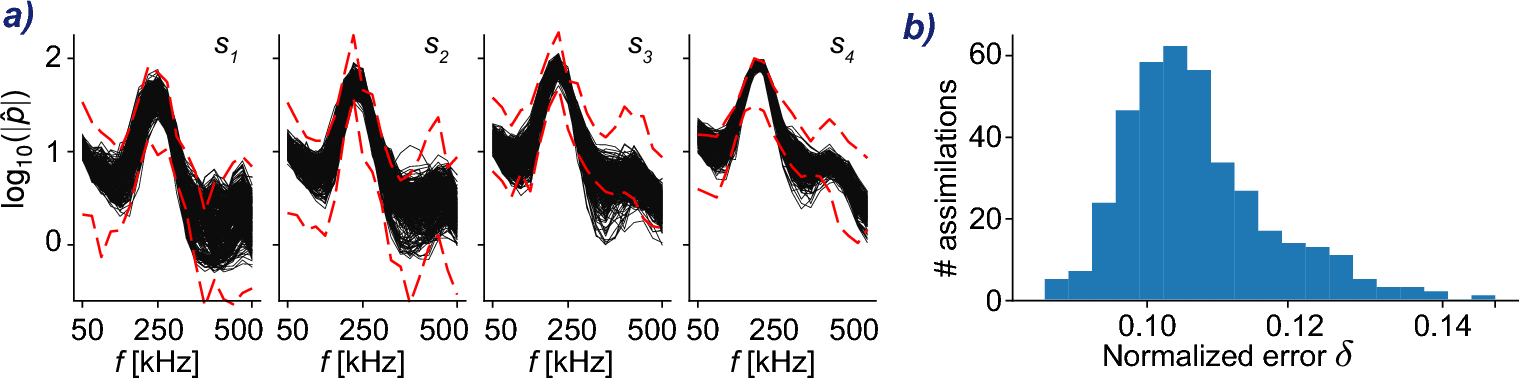

Left (a): cohort of \(392\) experimental measurements (black solid lines); boundaries of training dataset (red dashed lines). Right (b): performance of fast data assimilation with FastDA on the cohort of \(392\) experimental measurements; each bar spans a 0.3581% interval of discrepancy error \(\delta\) (Eq. 4); each column represents the amount of different data assimilation problems within an interval of error values; discrepancy error computed as in Eq. (4).
