Figure 8

From: Exploring the mechanism of diabetic cardiomyopathy treated with Qigui Qiangxin mixture based on UPLC-Q/TOF-MS, network pharmacology and experimental validation

Figure 8

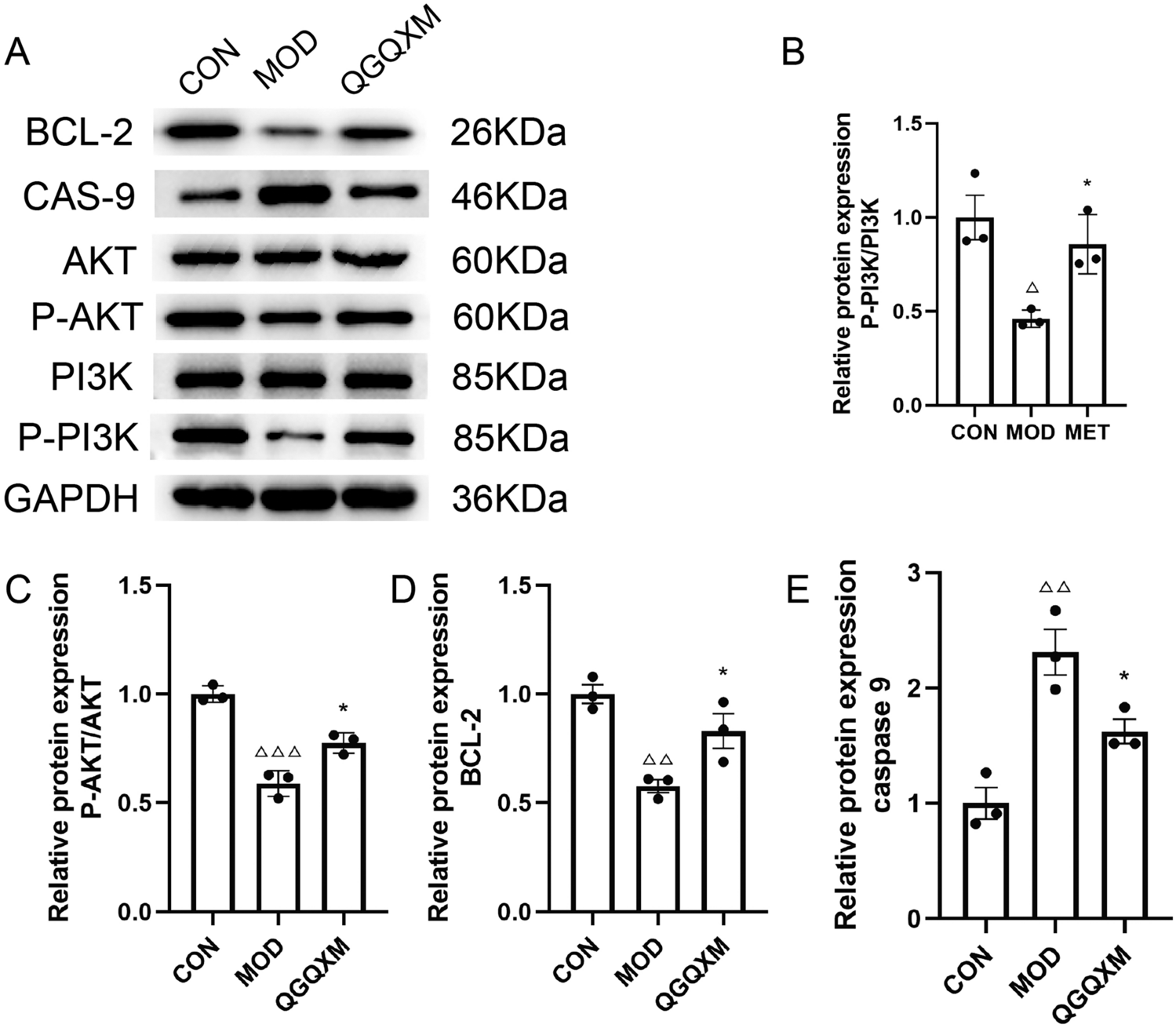

(A) Representative images of the strips by Western blot. (B) phosphorylated PI3K protein level (P-PI3K); (C) phosphorylated AKT protein level (P-AKT); (D) content of Bcl-2, (E) content of caspase9. The relevant expressions were summarized (n = 3), ΔΔ compared with the control group P < 0.01, ΔΔΔ compared with the control group P < 0.001, * compared with the model group P < 0.05.
