Figure 3

From: A novel algorithm to differentiate between primary lung tumors and distant liver metastasis in lung cancers using an exosome based multi gene biomarker panel

Figure 3

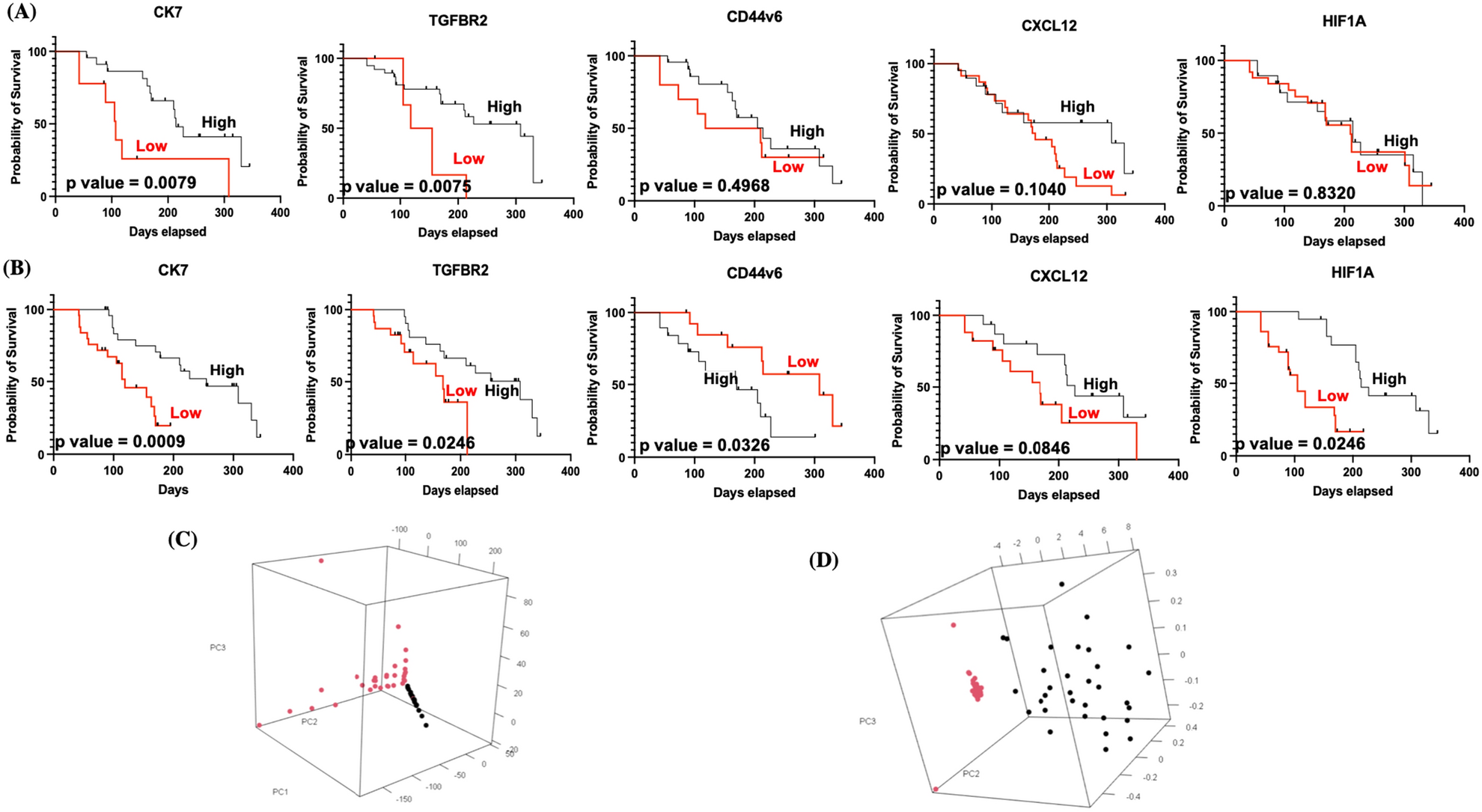

Kaplan Meier Survival Curves for (A) Tissue expression of CD44v6, CXCL12, CK7, HIF1A and TGFBR2 of lung cancer patients with liver metastasis, (B) exosome expression of CD44v6, CXCL12, CK7, HIF1A and TGFBR2 of lung cancer patients with liver metastasis. PCA analysis for differentiating between primary and the metastatic cohorts—3D score plot according to primary and metastatic sites in PCA for (C) tissue and (D) exosomes respectively, Red: Primary site expression Black: metastatic site expression.
