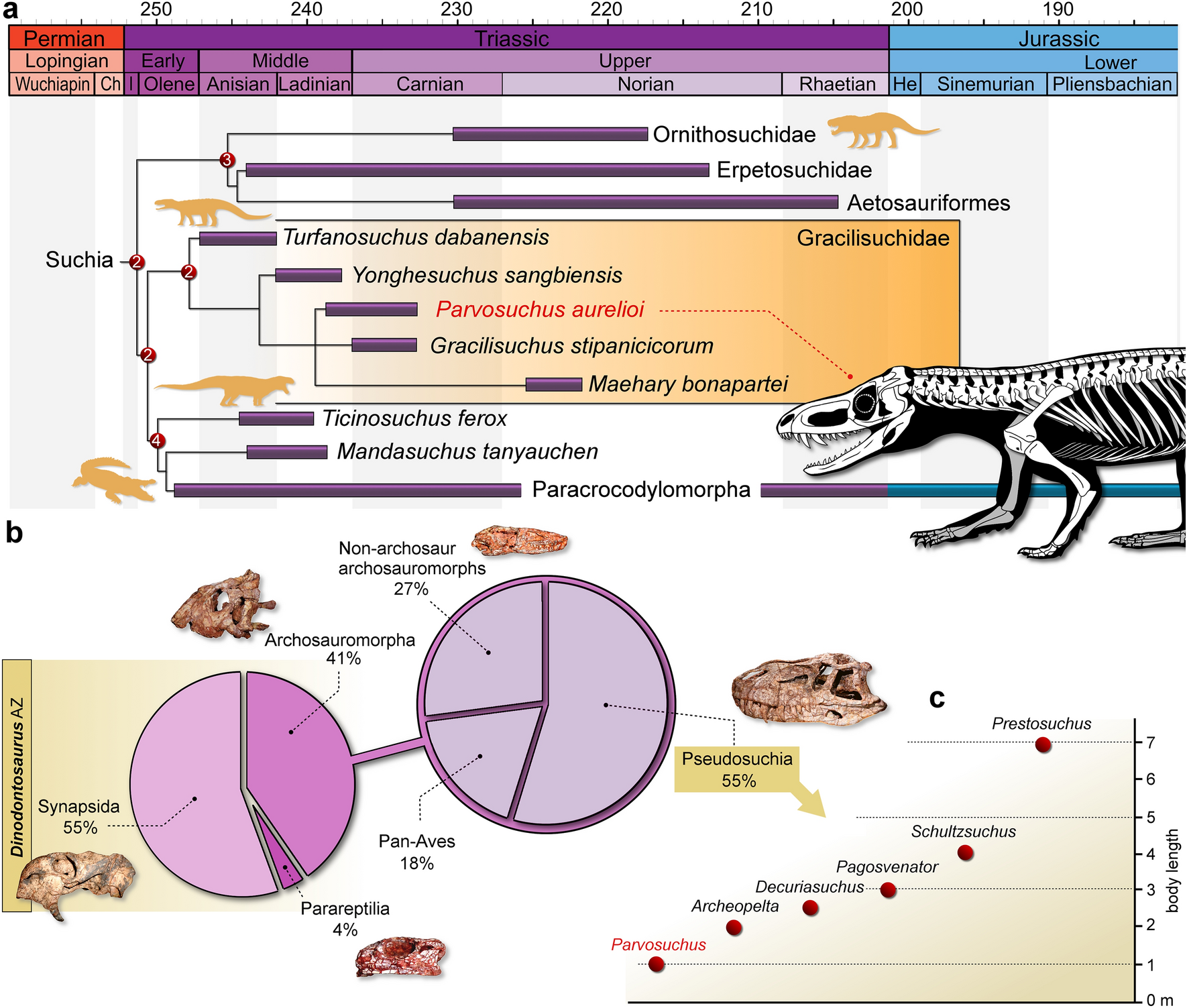

Figure 5
From: A new small-sized predatory pseudosuchian archosaur from the Middle-Late Triassic of Southern Brazil
Results of the phylogenetic analysis and diversity of the Dinodontosaurus Assemblage Zone of Brazil. (a) Time-calibrated reduced strict consensus tree depicting the phylogenetic position of Parvosuchus aurelioi gen. et sp. nov. Number on nodes represent Bremer support values higher than 1. The temporal bars for each OTU represent the maximum and minimum ages of each geological unit. Divergence times set as approximately 1 million years. (b) Percentage of taxonomic groups recorded in the Dinodontosaurus Assemblage Zone according to the number of species. (c) Approximate body length of pseudosuchian species from the Dinodontosaurus ZA.
