Figure 4
From: Flavivirus Zika NS4A protein forms large oligomers in liposomes and in mild detergent

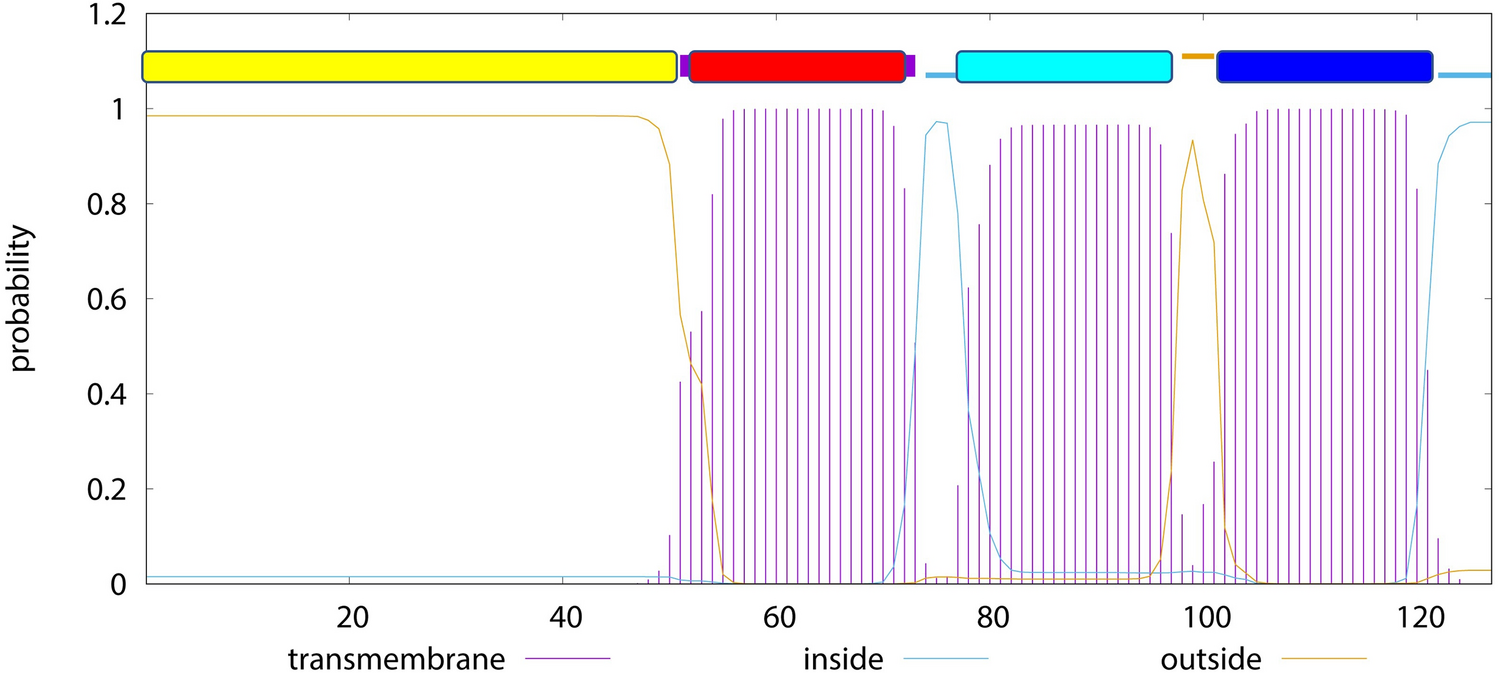

Predicted topology of ZIKV NS4A. Prediction of TM domains and topology using TMHMM. The different parts of the protein are color coded: N-terminal tail (yellow) and the three predicted TM domains in red, cyan, and blue.
