Figure 3 | Scientific Reports

Figure 3

From: Novel paired CD13-negative (MT-50.1) and CD13-positive (MT-50.4) HTLV-1-infected T-cell lines with differential regulatory T cell-like activity

Figure 3

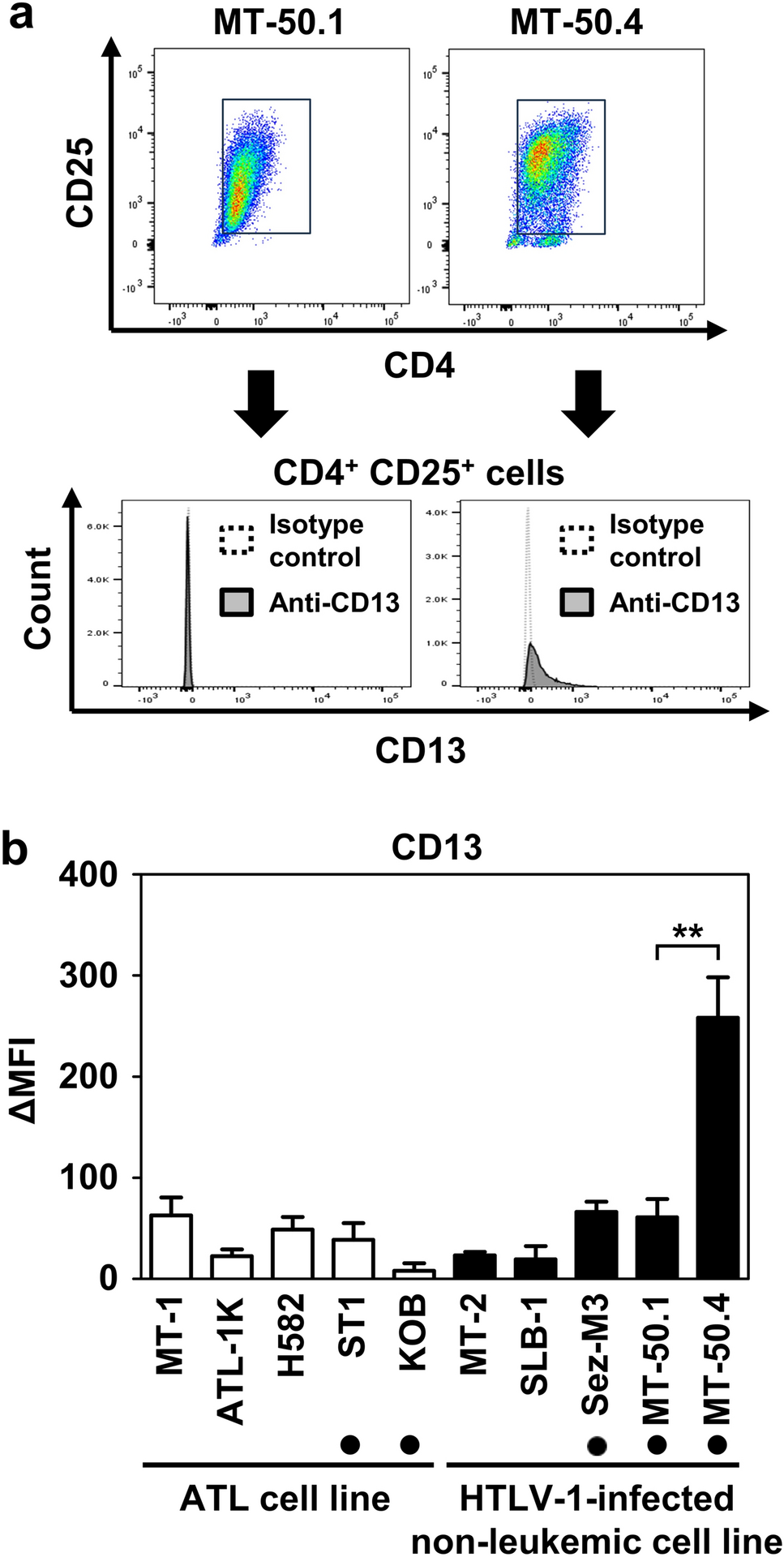

CD13 expression analysis in MT-50.1 and MT-50.4 cells. (a) CD13 expression in CD4+CD25+ cells. CD4+CD25+ cells were isolated using flow cytometric sorting and analyzed for CD13 expression. (b) CD13 expression in CD4+CD25+ cells from various ATL cell lines and HTLV-1-infected non-leukemic cell lines. CD13 expression level was represented as delta median fluorescence intensity (ΔMFI), calculated as the MFI of CD13 staining minus the MFI of the isotype control. The IL-2-dependent cell line is indicated using a filled circle. Data are shown as the mean ± standard error of the mean (SEM) of three independent experiments. Significant differences between MT-50.1 and MT-50.4 cells are shown as **P < 0.01.
