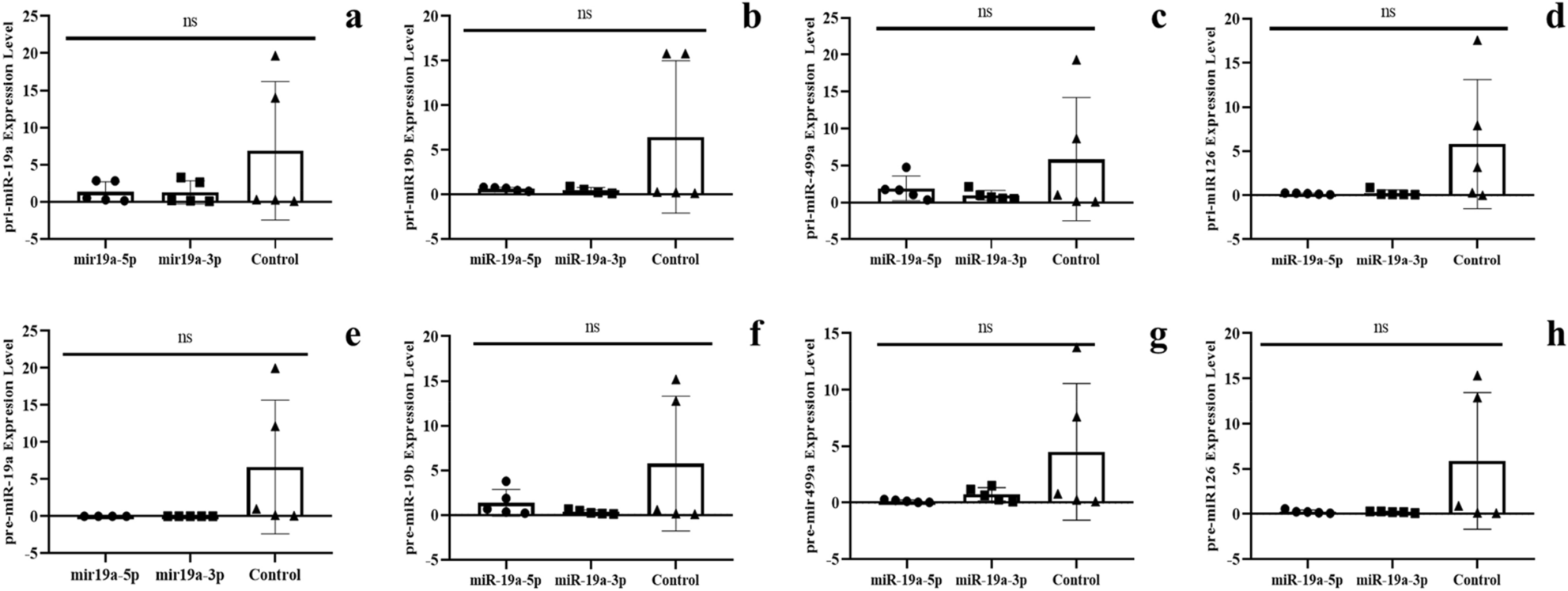

Figure 4
From: Experimentally altering microRNA levels in embryos alters adult phenotypes
The expression of pri and pre-miRNAs in the blood of F0 generation mice born after microinjection of miR-19a into fertilized eggs. (a) pri-miR-19a, (b) pri-miR-19b, (c) pri-miR-499a, (d) pri-miR-126a, (e) pre-miR-19a, (f) pre-miR-19b, (g) pre-miR-499a and (h) pre-miR-126a (All data were expressed with mean and ± SD; (N) = 5 for F0 mir19a-5p group, (N) = 5 for F0 miR19a-3p group and (N) = 5 for control; The x-axis illustrates the groups formed by microinjection with miR-19a-5p or -3p, alongside the control group. The y-axis represents the expressions of the miRNAs utilized in the study).
