From: A molecular subtyping associated with the cGAS-STING pathway provides novel perspectives on the treatment of ulcerative colitis

Figure 3

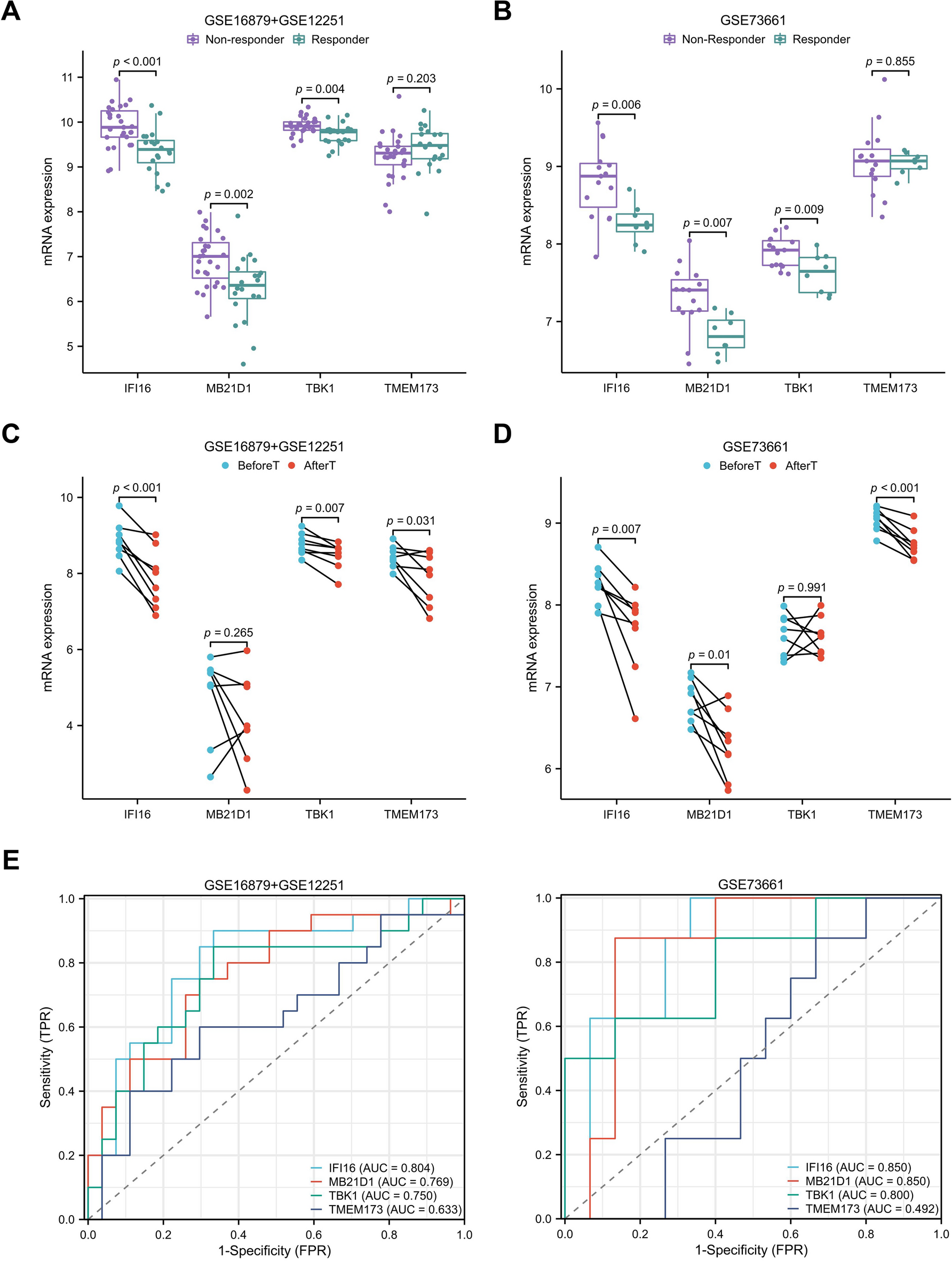

Expression differences of hub genes between responders and non-responders with anti-TNF treatment. (A, B) Comparison of hub gene expression between responders and non-responders with anti-TNF therapy based on GSE16879 + GSE12251 datasets and GSE73661. (C, D) Comparison of hub gene expression in responders before and after treatment. (E) ROC curve show the predictive values of hub genes in the anti-TNF treatment.
