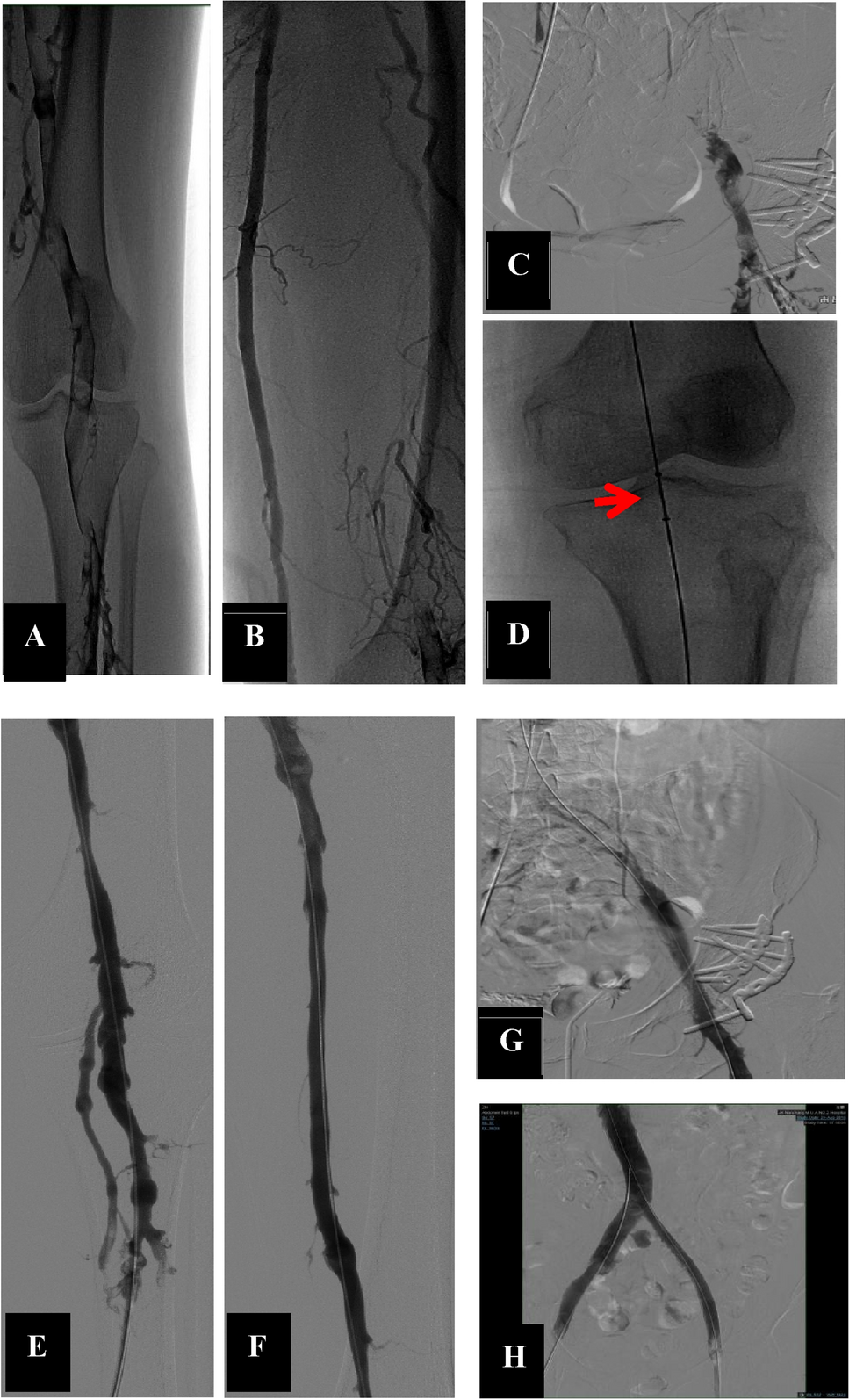

One patient exhibiting LEDVT and iliac vein compression syndrome underwent treatment via AngioJet rheolytic thrombectomy and iliac vein stent implantation. (A–C) The complete LEDVT in this patient. (D) The AngioJet rheolytic thrombectomy catheter. (E–G). The immediate effects following pharmacochemical thrombectomy. (H) The immediate effects on the iliac vein following stent implantation.
