Figure 3
From: Fast nondiffusive response of heat and turbulence pulse propagation

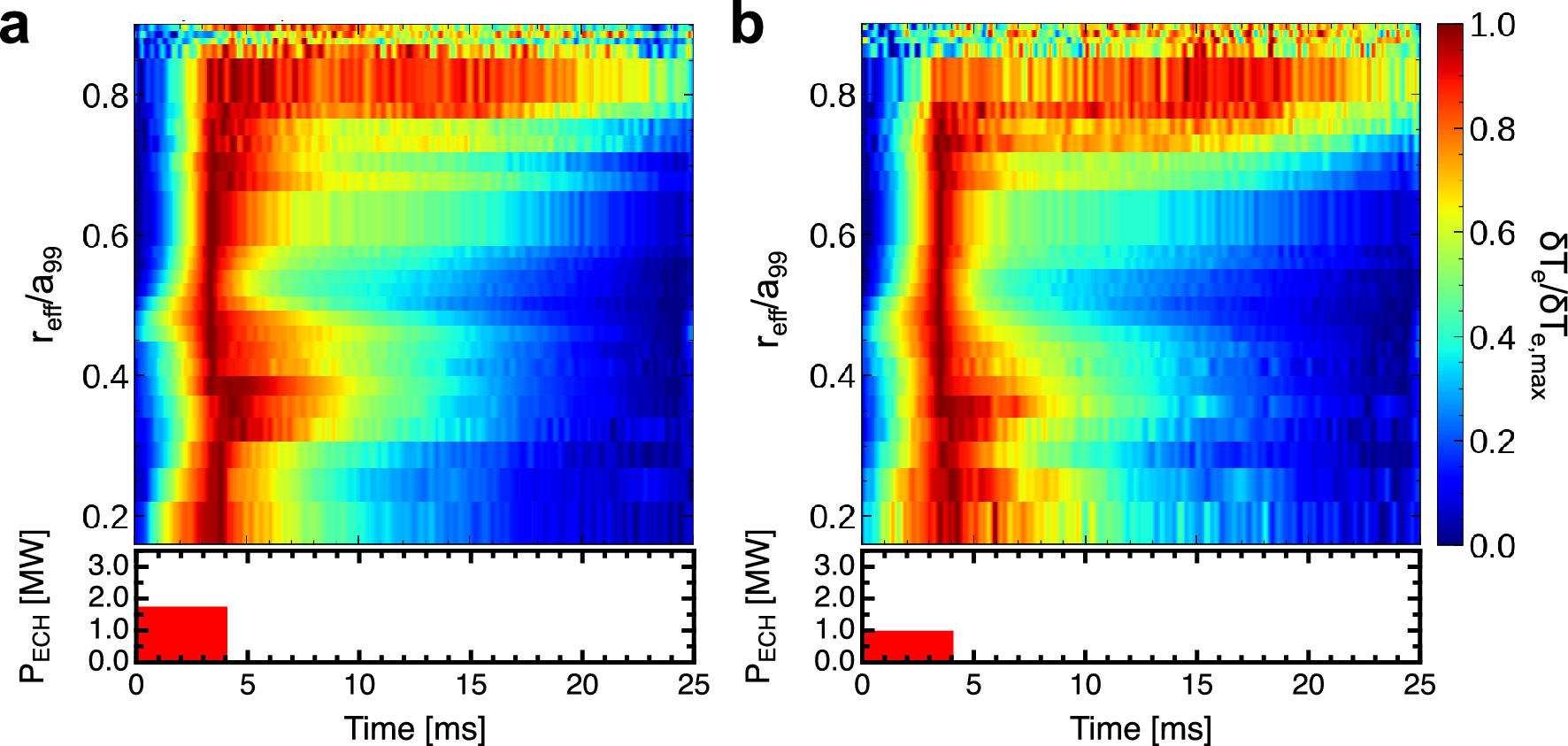

(a), (b) Time evolution of the \(T_e\) profiles measured by ECE with the variation normalized between 0 and 1. Time evolutions of ECH injection powers are shown at the bottom of the figures. The heating powers of ECH in (a) and (b) are 1.75 and 1 MW, respectively.
