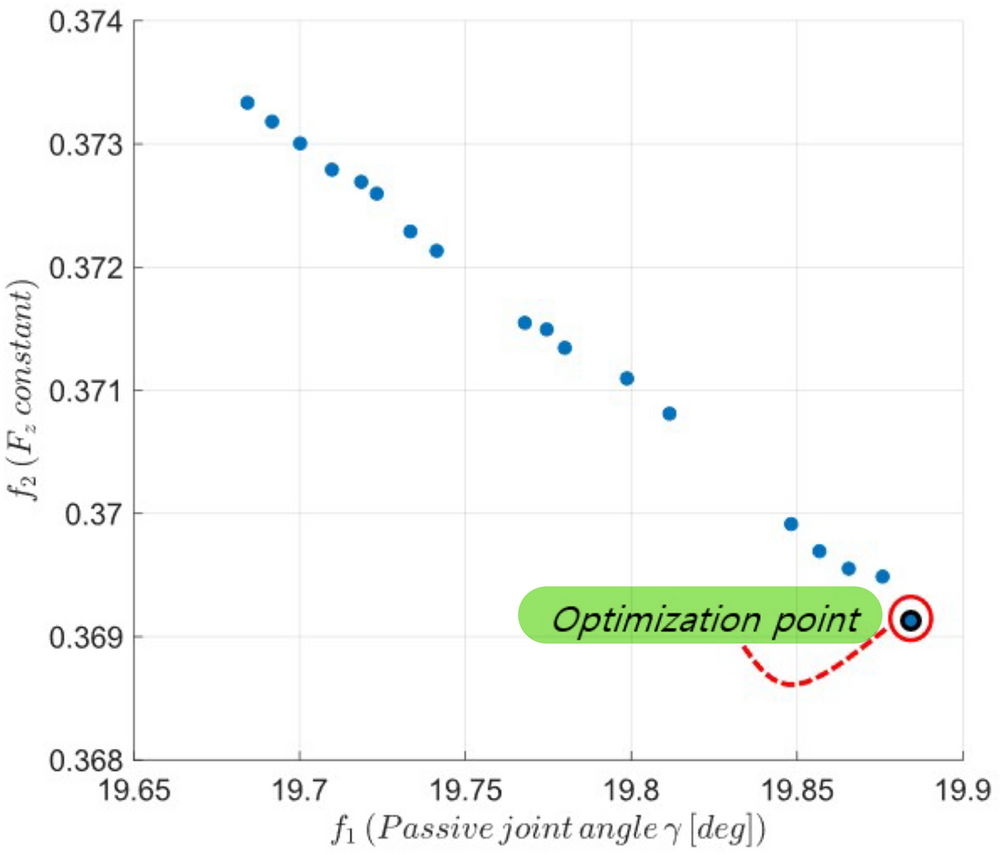

Figure 6

Design parameter result graph, \(f_{1}\) represents the passive point angle \(\gamma\) [deg], \(f_{2}\) represents the \(F_{z}\) constant value. \(f_{1}\) and \(f_{2}\) represent an inverse relationship with each other. The red circle represents the optimum point of \(f_{1}\), \(f_{2}\).
