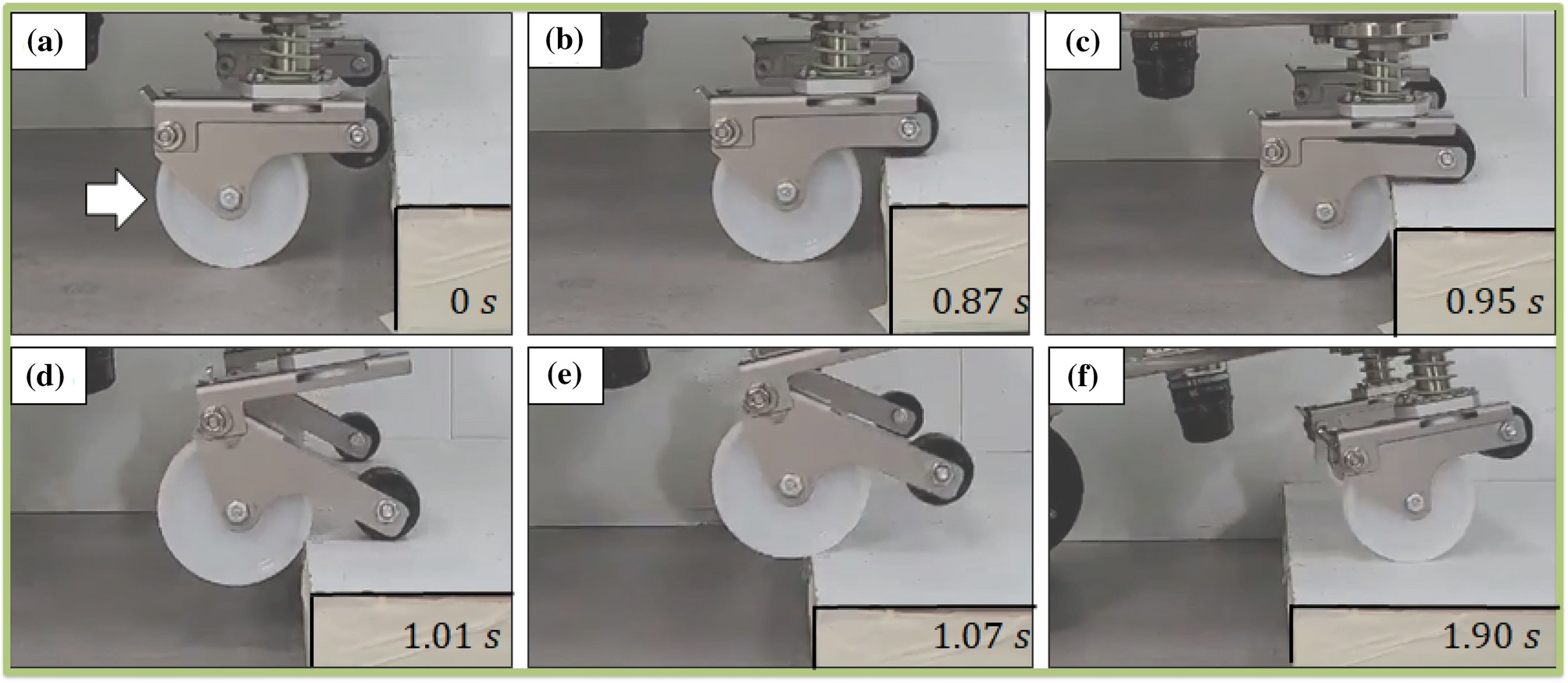

Figure 9
Novel caster step obstacle climbing snapshot; 65 mm step overcoming capability test of the novel caster. The picture shows the order and the time sequence. The white arrow indicates the direction of the robot’s progress.
