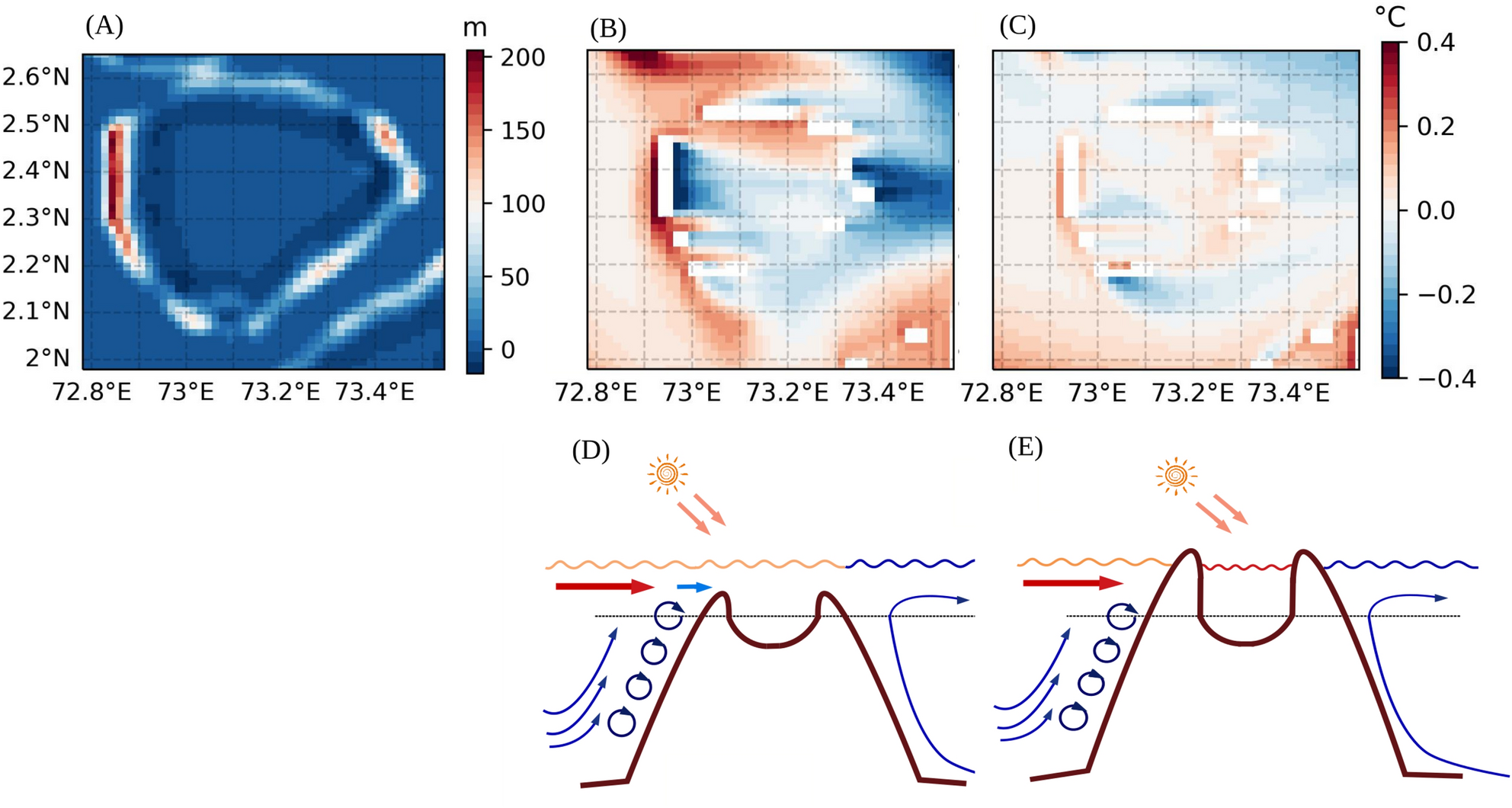

Figure 8
From: Kilometer-scale ocean processes behind the variability of the Island Mass Effect in the Maldives
(A) Example of difference in the bathymetry between the current one and the one in which the land around the atolls have been reclaimed. (B,C) Average temperature anomalies in the first 15 days of June with respect to the zonal mean for (B) the original run, (C) the modified one. The process at play is schematically represented in panels (D,E).
