Figure 9

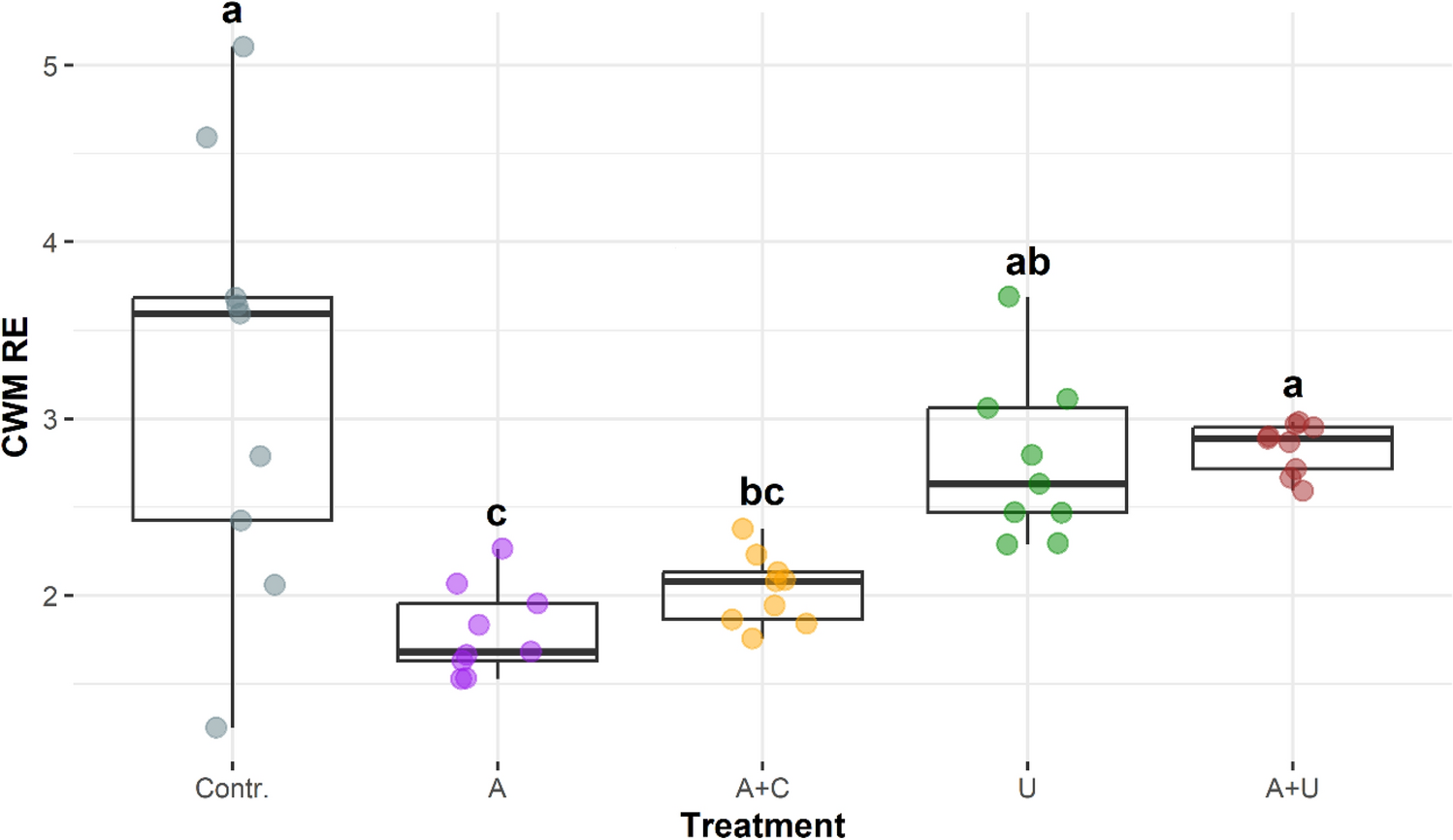

Community weighted means of relative elongation (CWM RE) values in the experimental setups from the 8th day of the experiment. The boxplots visually depict the distribution of data by representing the interquartile range with a box, indicating the median with a bold line inside the box, and displaying the minimum and maximum values through whiskers (points outside the whiskers’ range are outliers). Homogenous groups are indicated with different lowercase letters and based on significant differences of the CWM values of RE among treatments (Dunn’s test, P < 0.05). Abbreviations for experimental setups are specified under Fig. 3, (N = 45).
