Figure 7 | Scientific Reports

Figure 7

From: Identification of subclusters and prognostic genes based on GLS-associated molecular signature in ulcerative colitis

Figure 7

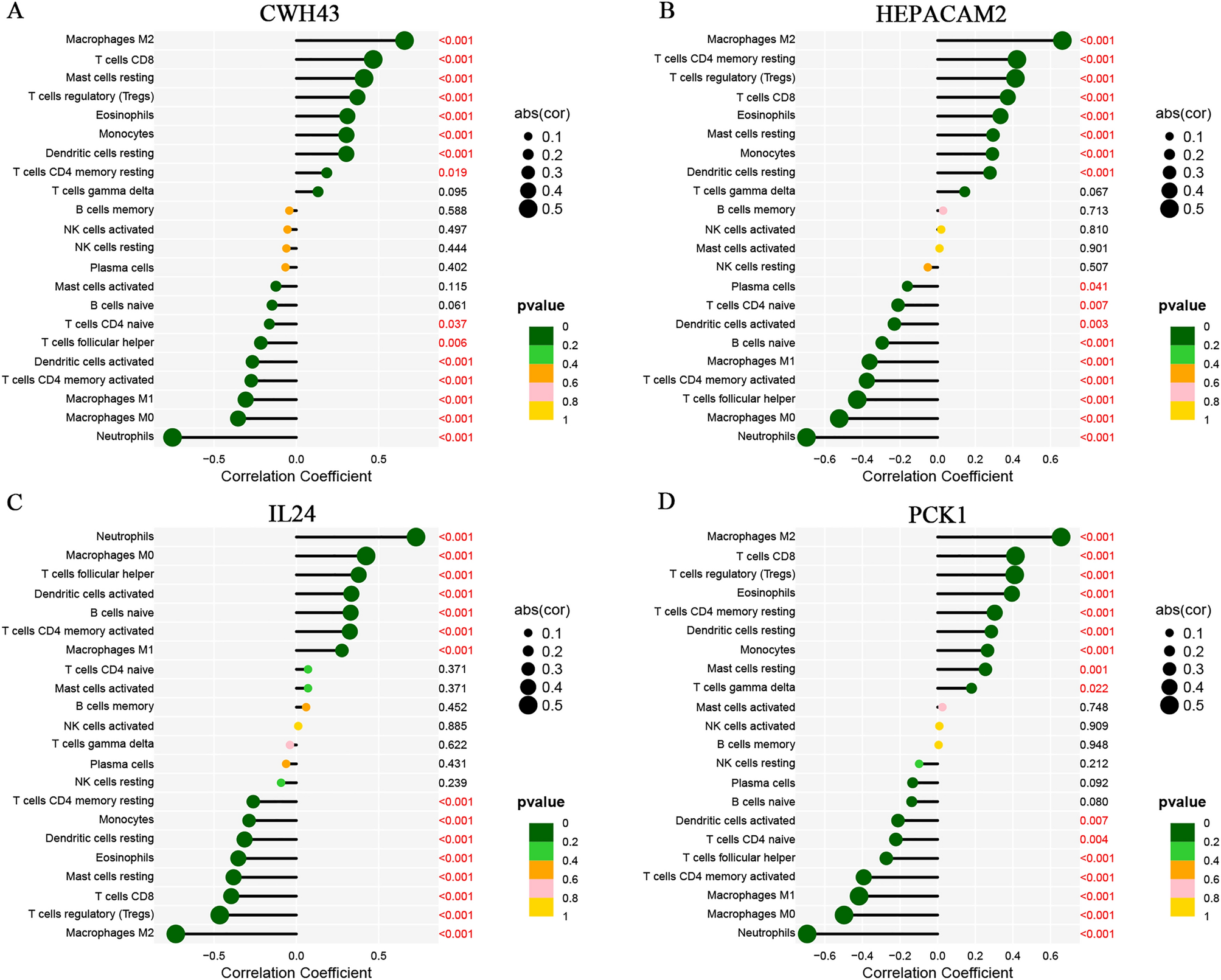

Relationship between the expression levels of characteristic biomarkers and infiltrating immune cells. (A) Correlation between the expression level of CWH43 and infiltrating immune cells. (B) Correlation between the expression level of HEPACAM2 and infiltrating immune cells. (C) Correlation between the expression level of IL24 and infiltrating immune cells. (D) Correlation between the expression level of PCK1 and infiltrating immune cells.
