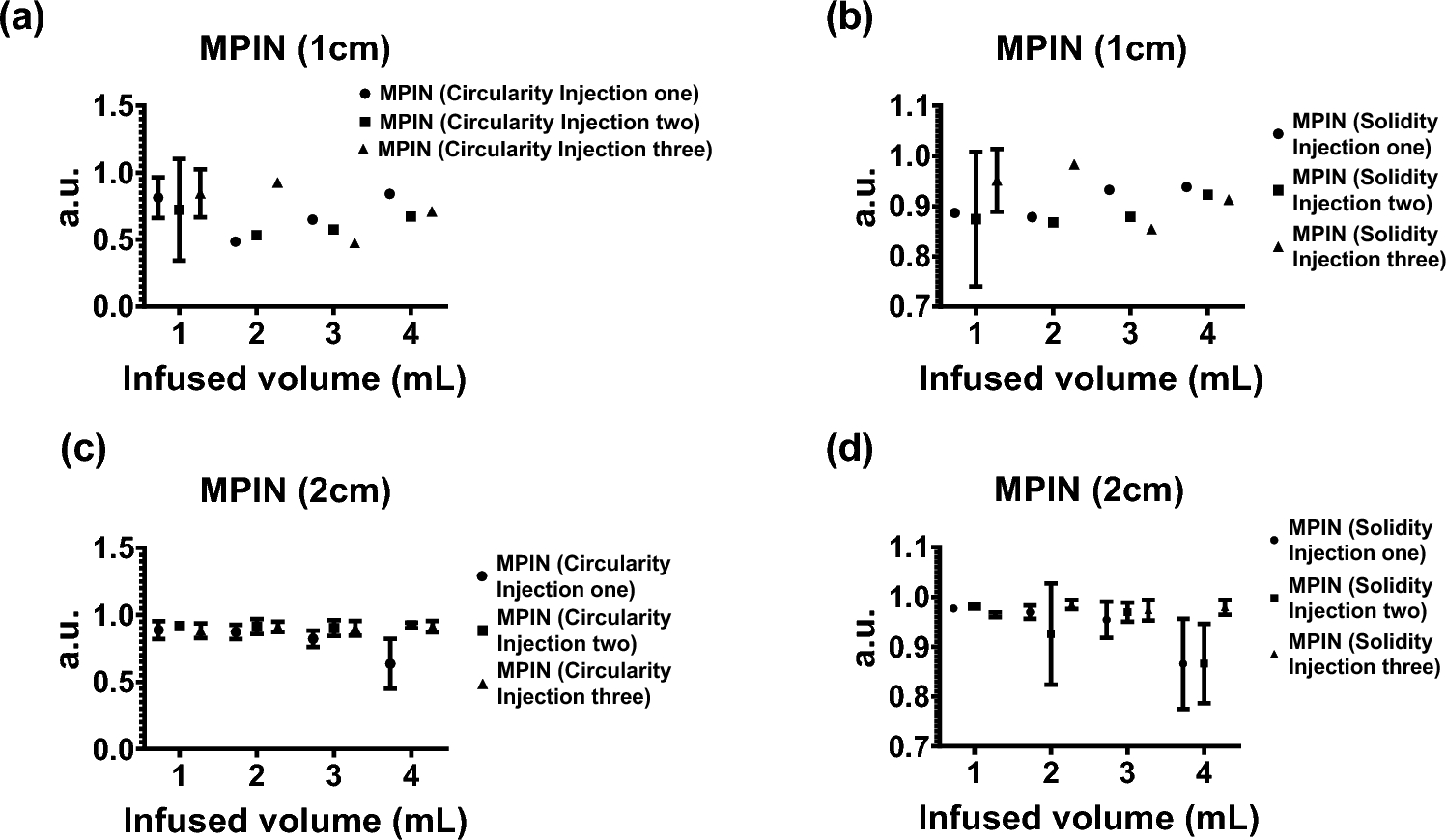

Circularity and solidity for POL22 with iodine, 4 mL injected at 10 mL/h in ex vivo bovine liver. The circularity (a, c) and solidity (b, d) based on cone beam CT for MPIN deployed 1 cm (a, b) and deployed 2 cm (c, d). Three injections were performed for each device and the values of circularity and solidity are reported for each injection at 1 mL increments (1, 2, 3, and 4 mL total injected volumes). Error bars represent standard deviations of mean value. n = 3 for all the experiments.
