Figure 8
From: Optimization design of battery bracket for new energy vehicles based on 3D printing technology

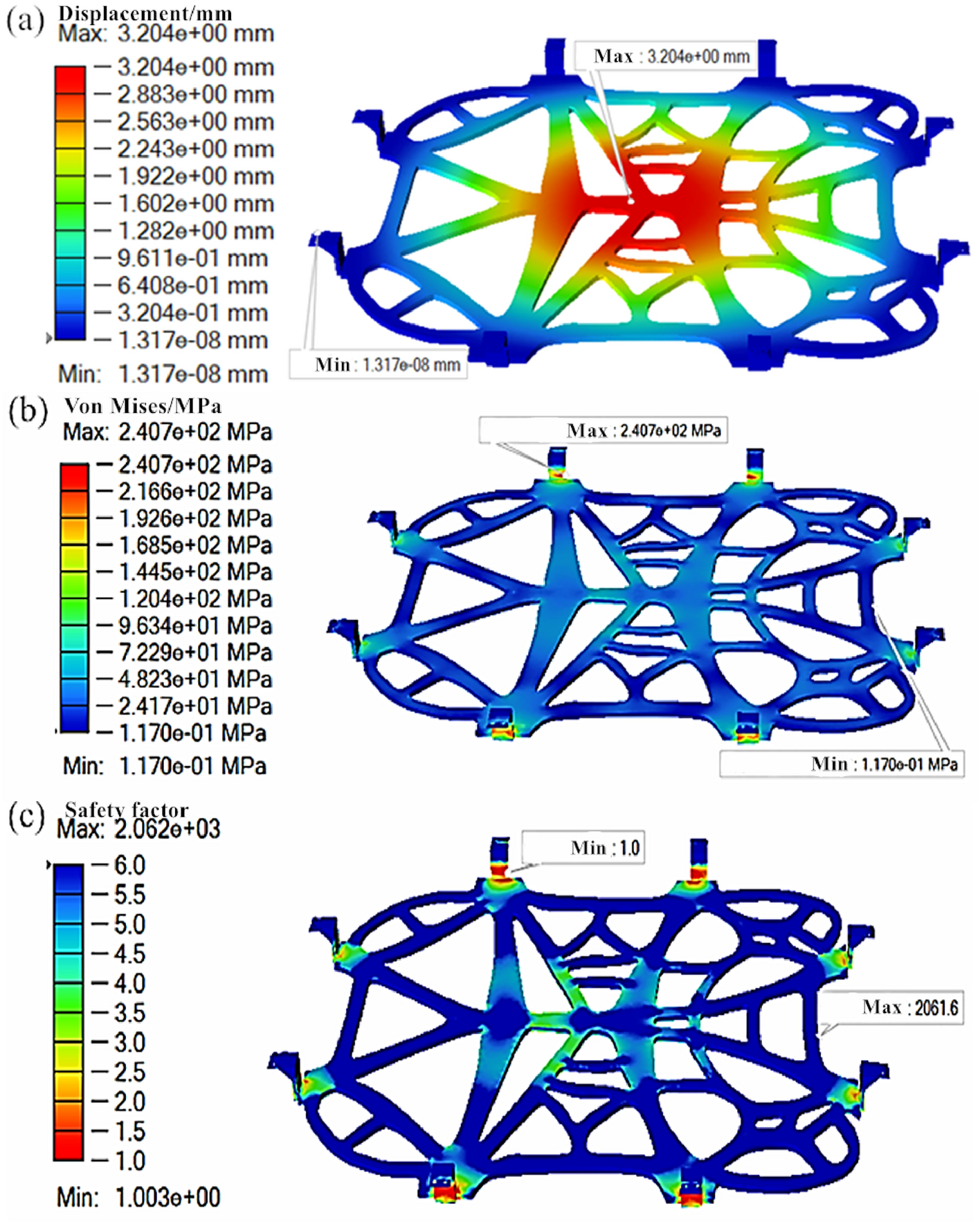

Force analysis results of the battery carrier: (a) Displacement cloud map; (b) stress cloud map; (c) safety factor.
Figure 8 | Scientific Reports
