Figure 2
From: Impacts of glacial discharge on the primary production in a Greenlandic fjord

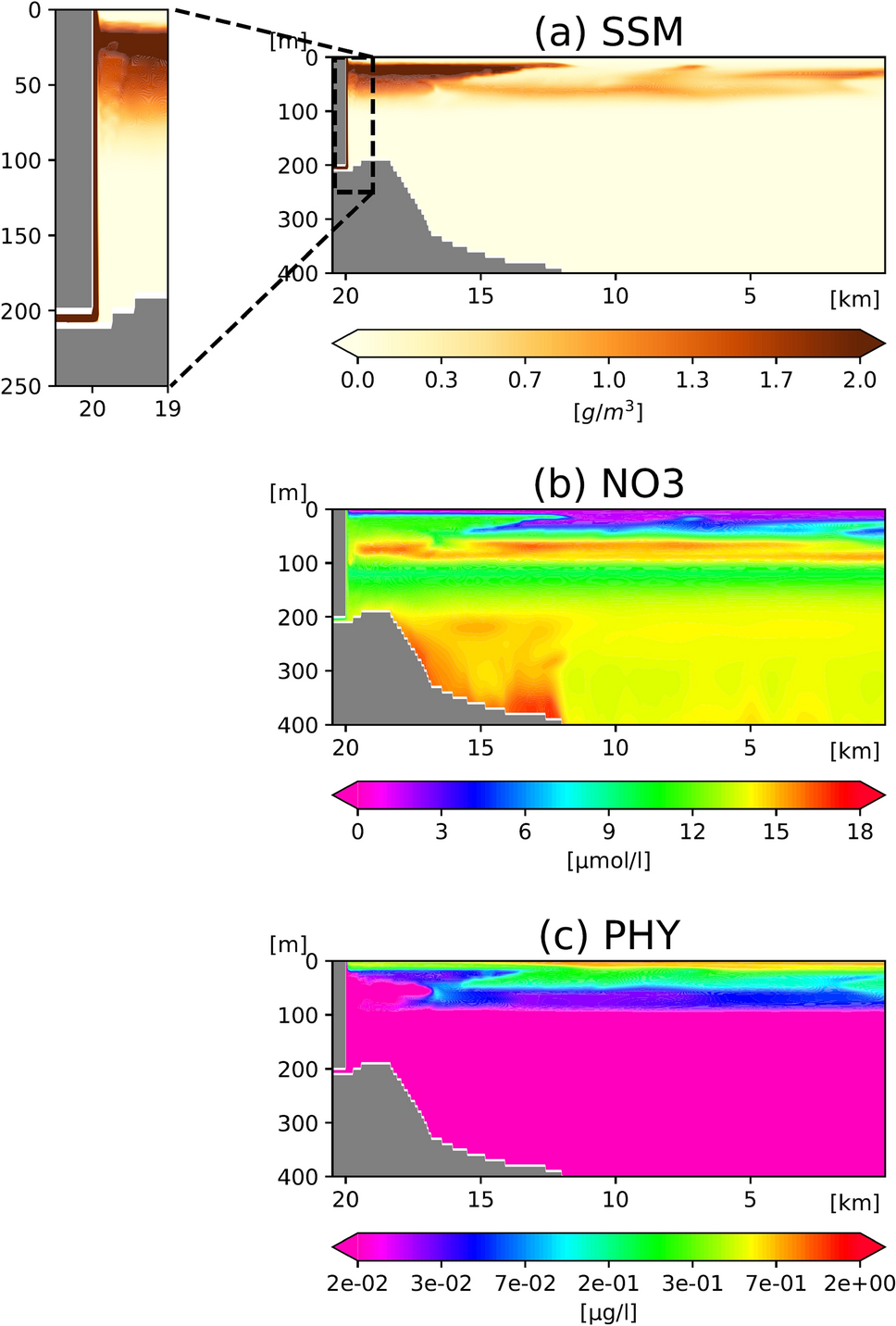

Vertical cross-sections of the model domain, depicting the distributions of STD (a) suspended sediment matter (SSM), (b) nitrate (NO3), and (c) phytoplankton (PHY) after 19 days since the onset of the meltwater discharge. The ecosystem model runs on a nitrogen basis. Unit conversion from nitrogen (μmol/l) to chl.a (μg/l) follows Ref.44.
