Figure 3
From: Impacts of glacial discharge on the primary production in a Greenlandic fjord

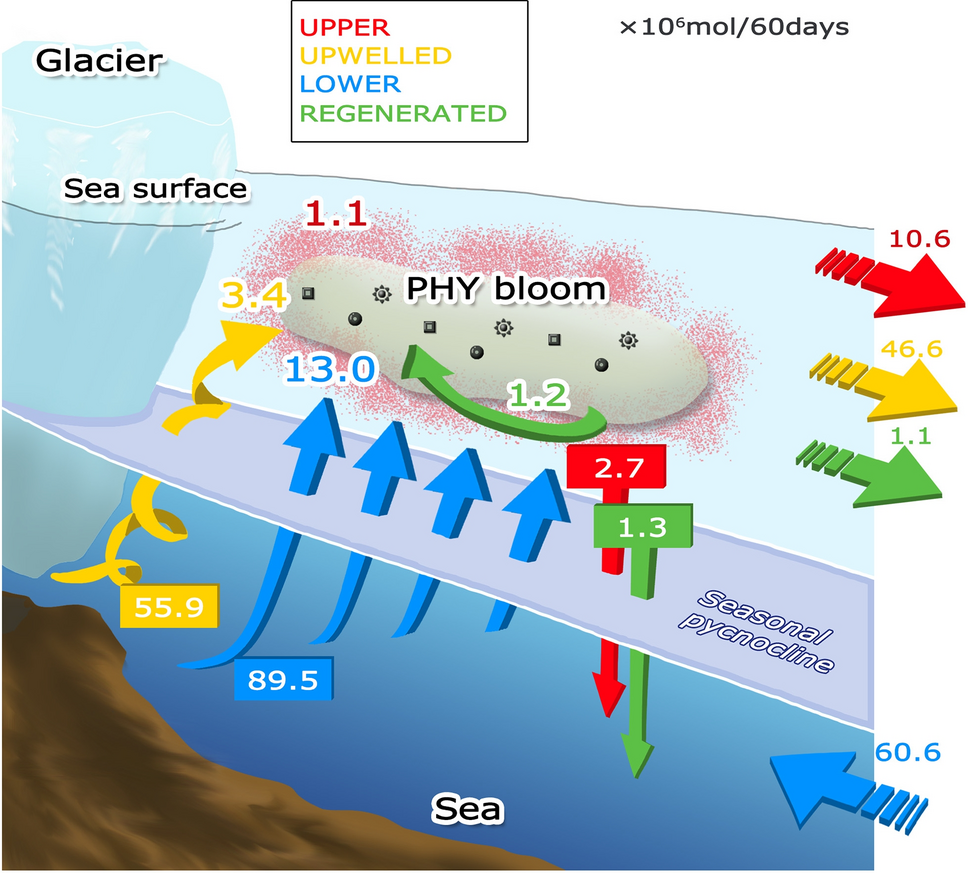

Schematic representation of the nitrate budget associated with subglacial discharge and phytoplankton blooms. Numbers outlined in white around “PHY bloom” indicate the net primary productions of each nitrate source (here synonymous with nitrates used for phytoplankton). Numbers enclosed in squares indicate the amounts of nitrates transported across the seasonal pycnocline at approximately 100 m depth. Numbers to the right indicate the amounts of nitrates leaving or entering the fjord. All the numbers represent the difference between STD and WOD for 60-day model runs (× 106 mol/60 days).
