Figure 8
From: A HUG taxonomy of humans with potential in human–robot hugs

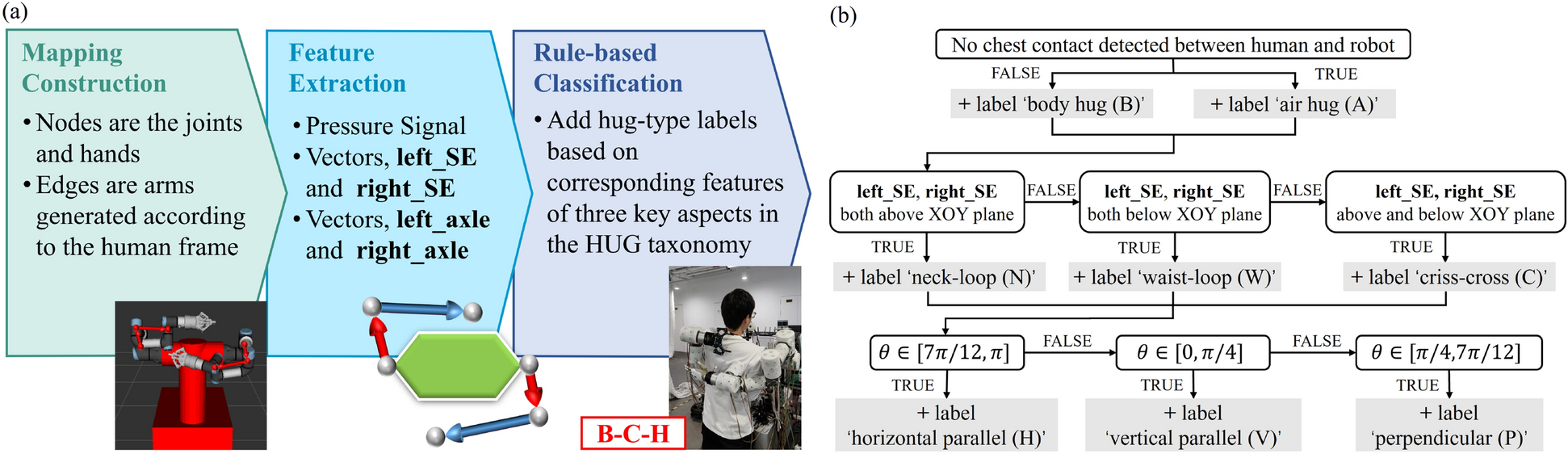

Rule-based classification system. (a)The figure shows an example of the mapping with E-skin signal (shown as a hexagon), as well as the detected hugging category as B-C-H hug. (b) Decision tree for distinguishing hug types.
