From: Identification and bioinformatics analysis of genes associated with pyroptosis in spinal cord injury of rat and mouse

Figure 3

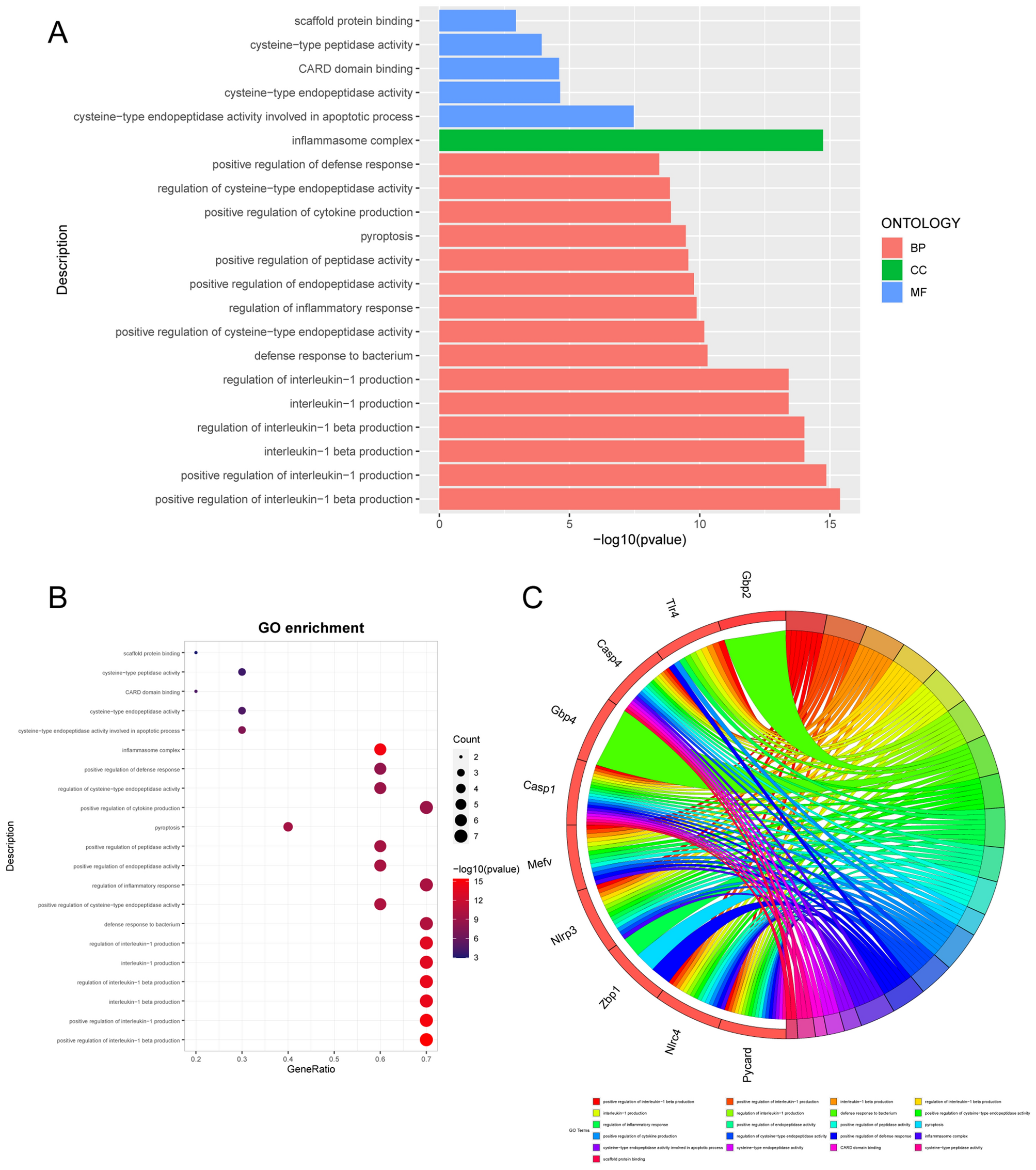

GO annotation of 10 pyroptosis-related DEGs of rat datasets following SCI. The bar charts (A) of the top 15 GO terms were drawn on the basis of P-value and the percentage of genes; terms with P-value < 0.01 are statistically significant. The bubble plot visually presents the GO terms in the enrichment analysis, with the size and color coding indicating the degree of enrichment and significance level (B). The chord plot shows the PRGs enriched in different GO terms (C).
