From: Foam density mapping via THz imaging

Figure 3

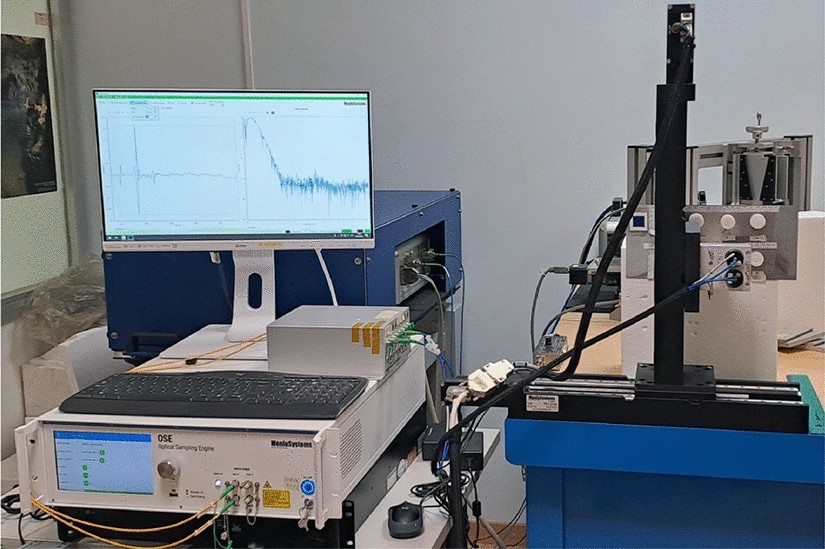

The adopted measurement set-up, with the optical sampling engine module (on the left side), whose output are connected to the THz reflection head positioned in front of the samples (right side). The sample are positioned on a flat metallic plane.
