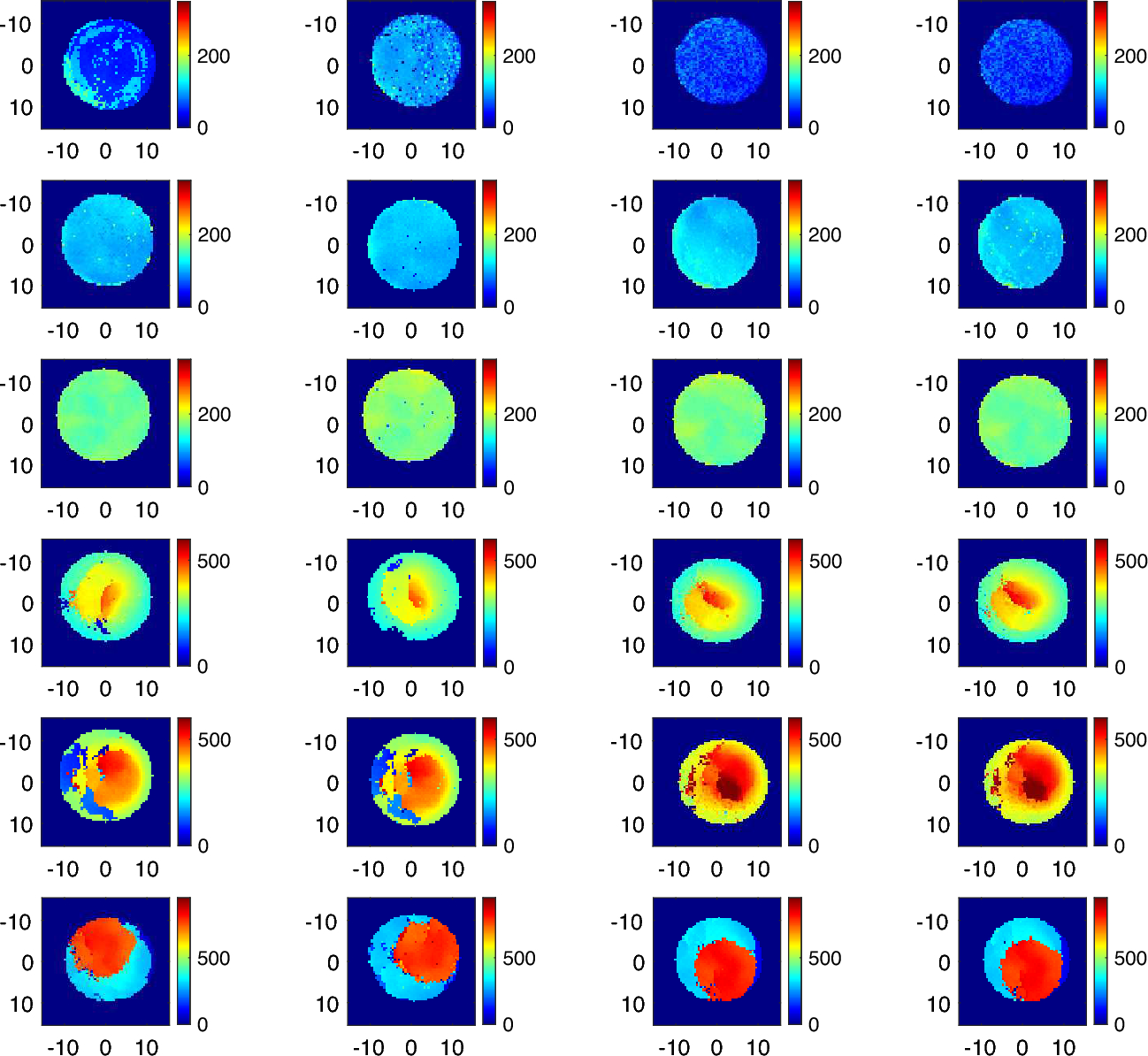

Density maps of T1–T6 samples. The samples with similar averaged density are shown in the same colorscale. The samples are arranged row-wise from top T1, T2, T3, T4, T5 and T6. Columns 1–2 correspond to Side 1, columns 3–4 correspond to Side 2. Axis dimensions are in mm.
