From: Foam density mapping via THz imaging

Figure 6

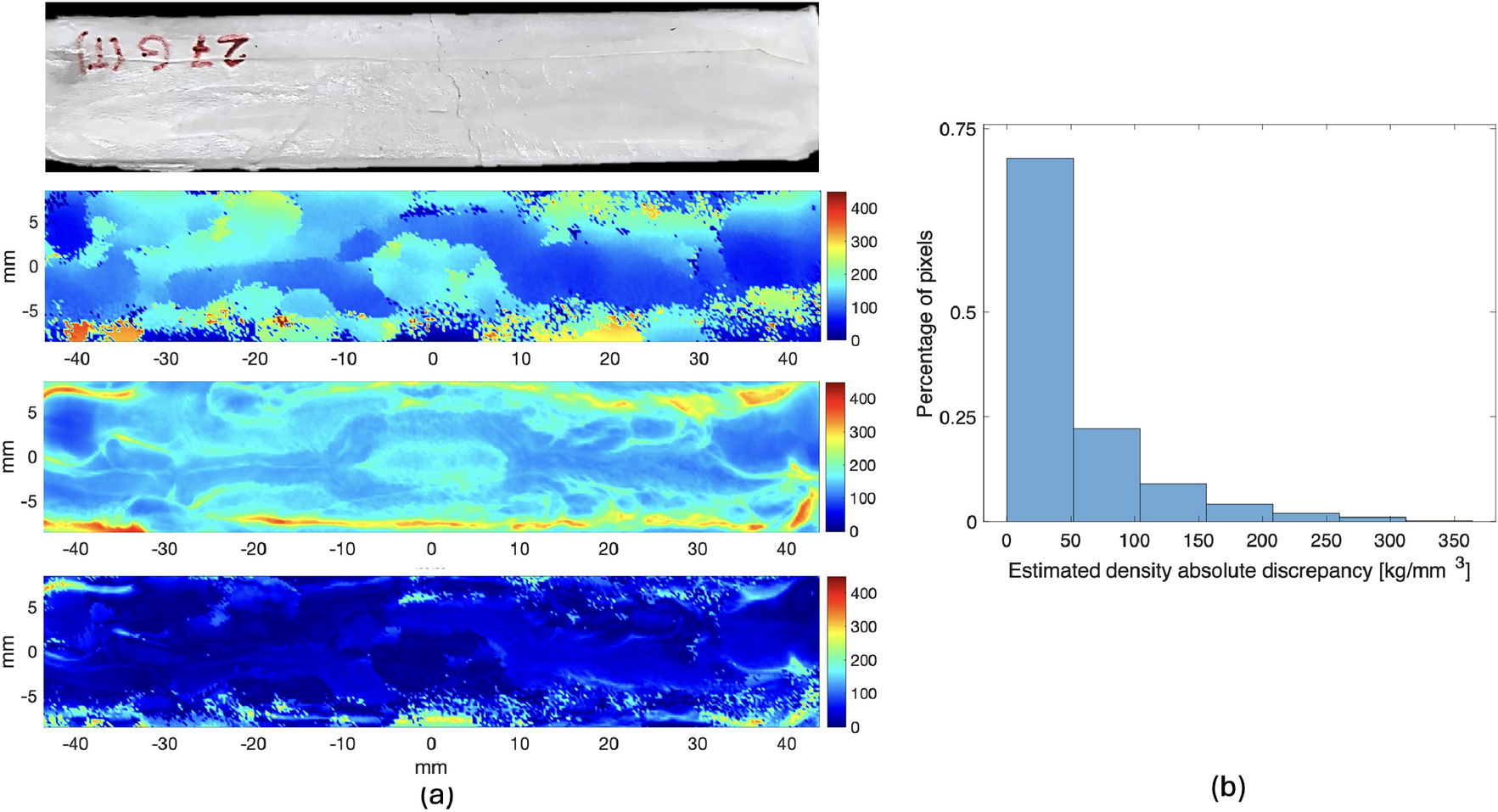

The graded-density foam sample. (a) from top to bottom: the sample; density map achieved via THz ToF imaging and using the calibration curve; density map achieved via X-ray microscopy; absolute discrepancy between the two maps. (b) Classification of the pixels of the absolute discrepancy map.
