From: Quantitative analysis of commercial coating penetration into Fagus crenata wood using X-ray microtomography

Figure 1

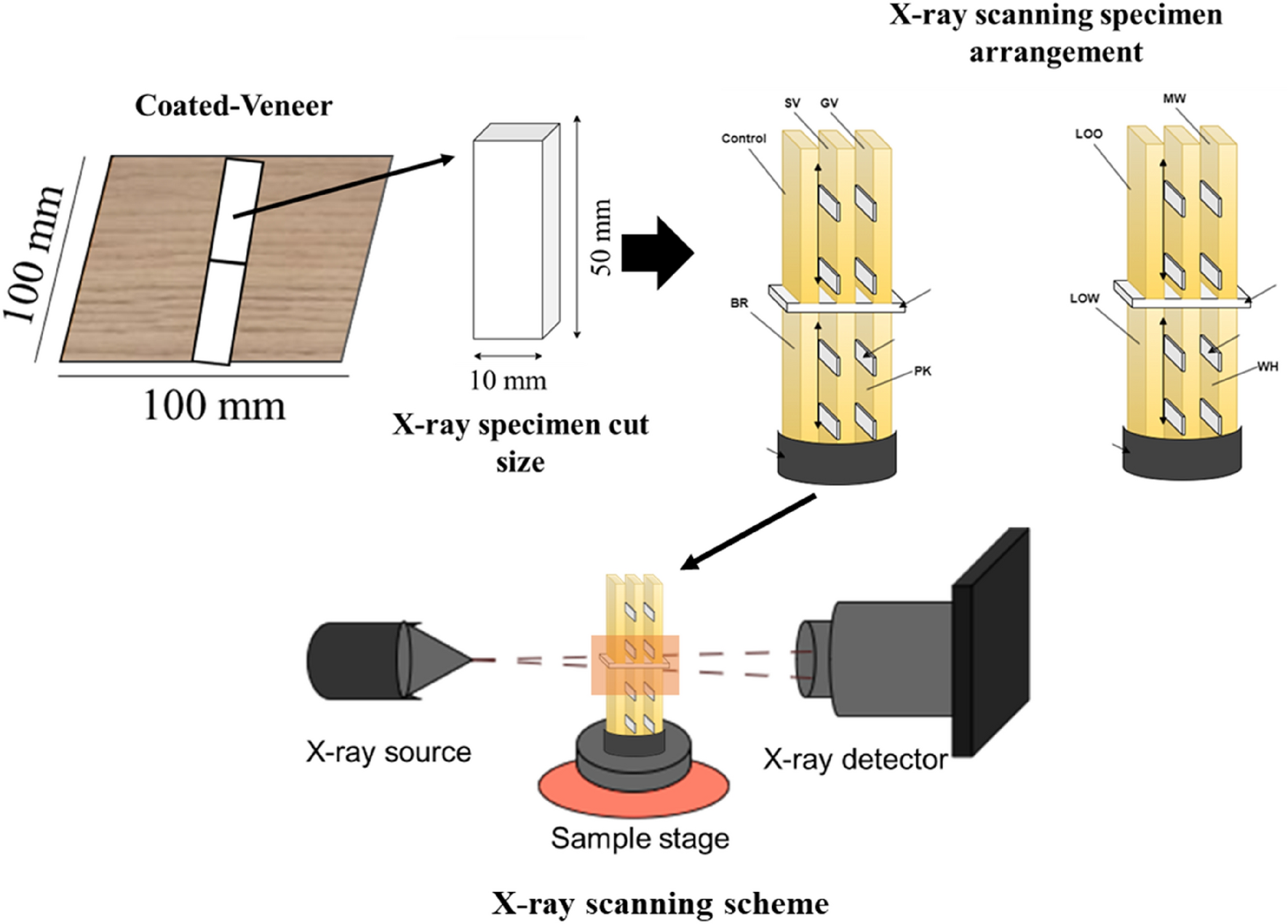

Schematic of the X-ray microtomography specimens’ preparation and scanning. The specimen arrangement consists of control, silver (SL), gold (GL), brown (BR), pink (PK), light-oak oil-based (LOO), matte white (MW), light-oak water-based (LOW), and white (WH). The two-way arrow on the scanning specimen arrangement indicating the face to face coating side and the long white bar indicating the tape. The orange square in the X-ray scanning scheme indicating the field of view of the X-ray.
