Figure 3 | Scientific Reports

Figure 3

From: Quantitative analysis of commercial coating penetration into Fagus crenata wood using X-ray microtomography

Figure 3

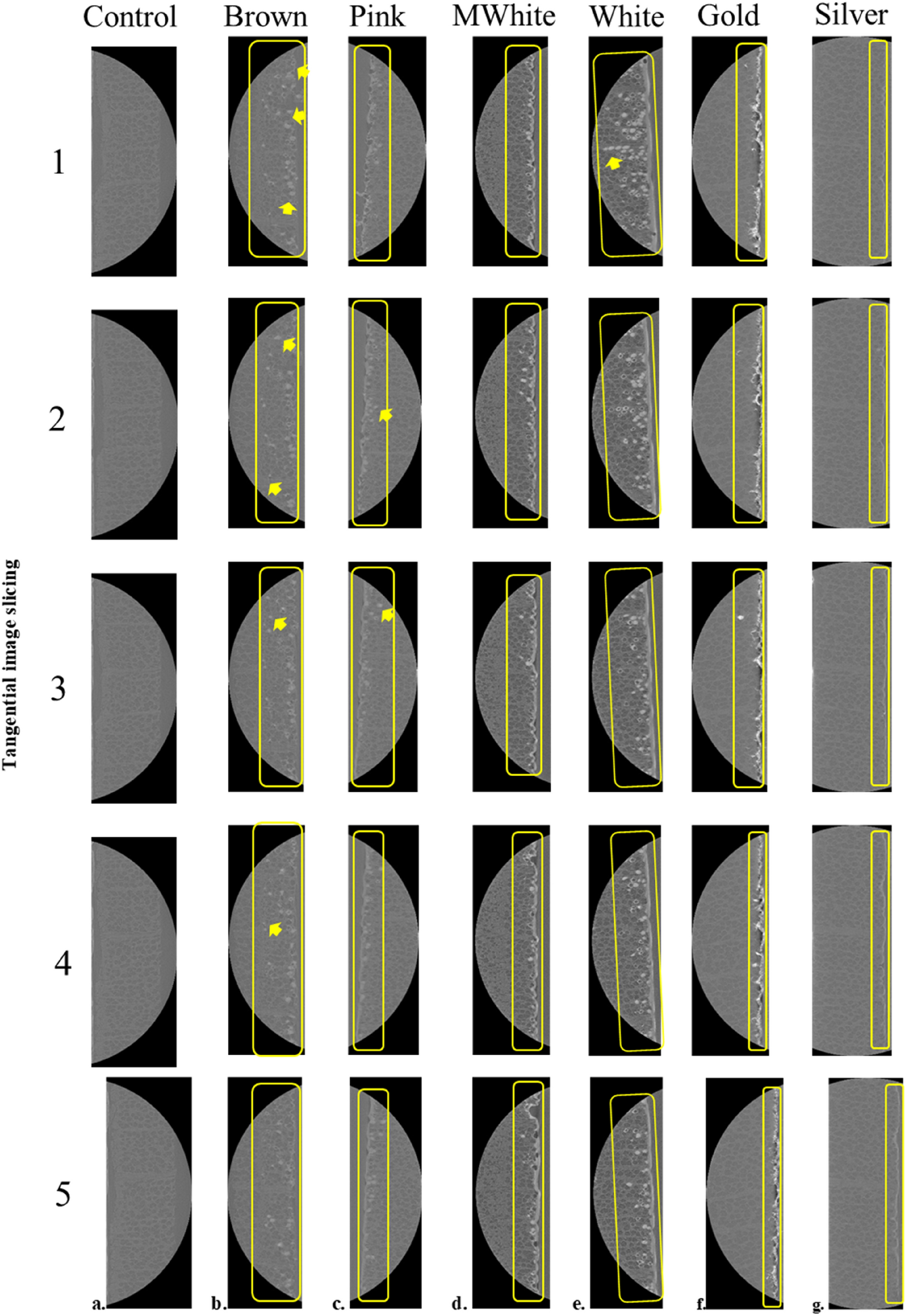

The 2D X-ray visualization of various coatings in transverse section from tangential image slicing. (a) Control (no treatment), (b) brown coating, (c) pink coating, (d) matte white coating, (e) white coating, (f) gold coating, (g) silver coating; yellow arrow indicating the coating existence in the wood vessels, yellow line indicating the coating area on the surface.
