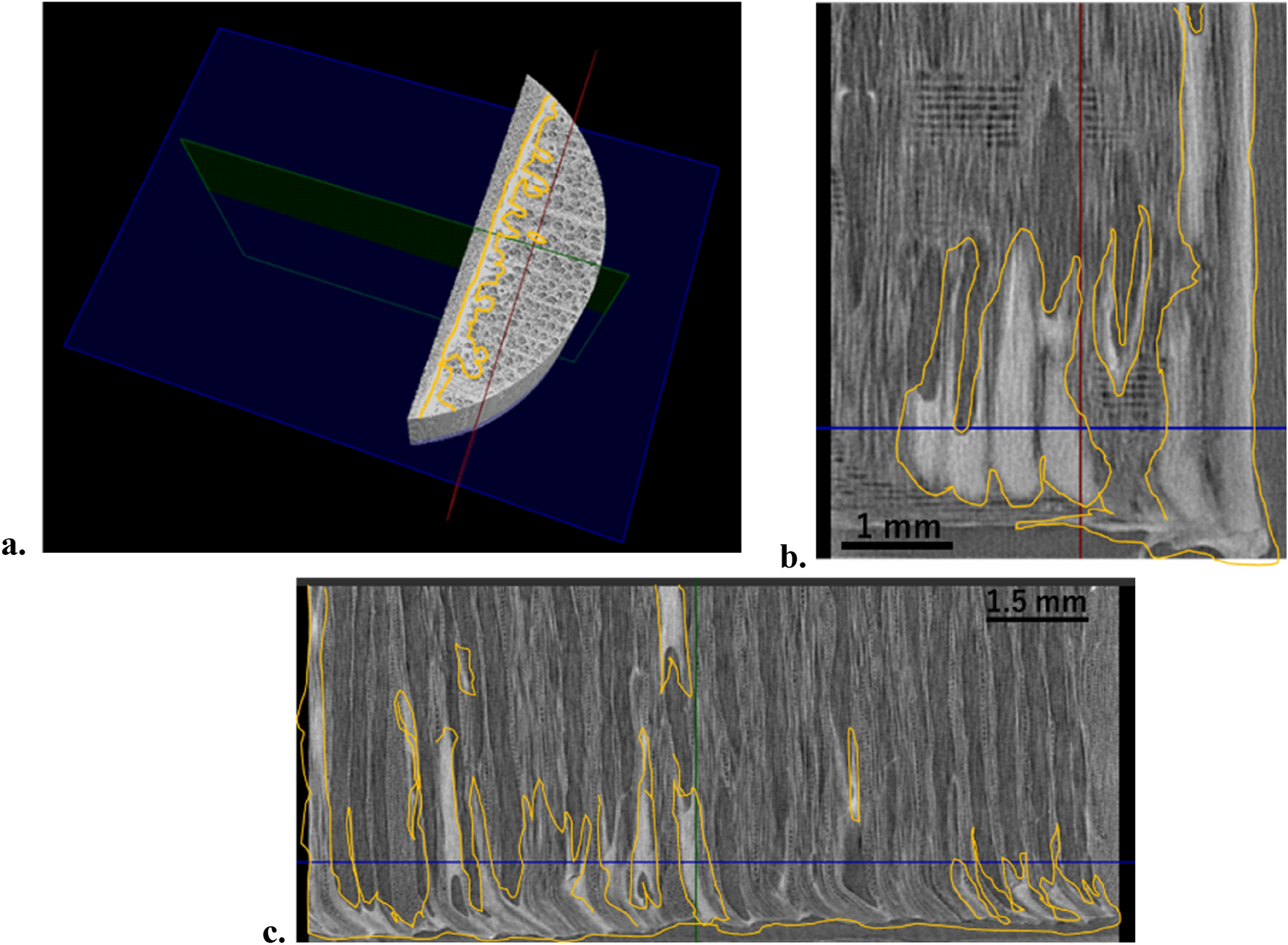

Figure 6

3D X-ray observation of coating penetration. (a) 3D image stack of veneer with white coating, (b) 2D representative image of a radial section were obtained from the green cut section of the 3D image, (c) 2D representative image of a tangential section were obtained from the red cut section of the 3D image. The yellow line annotated the coating part.
