Figure 3

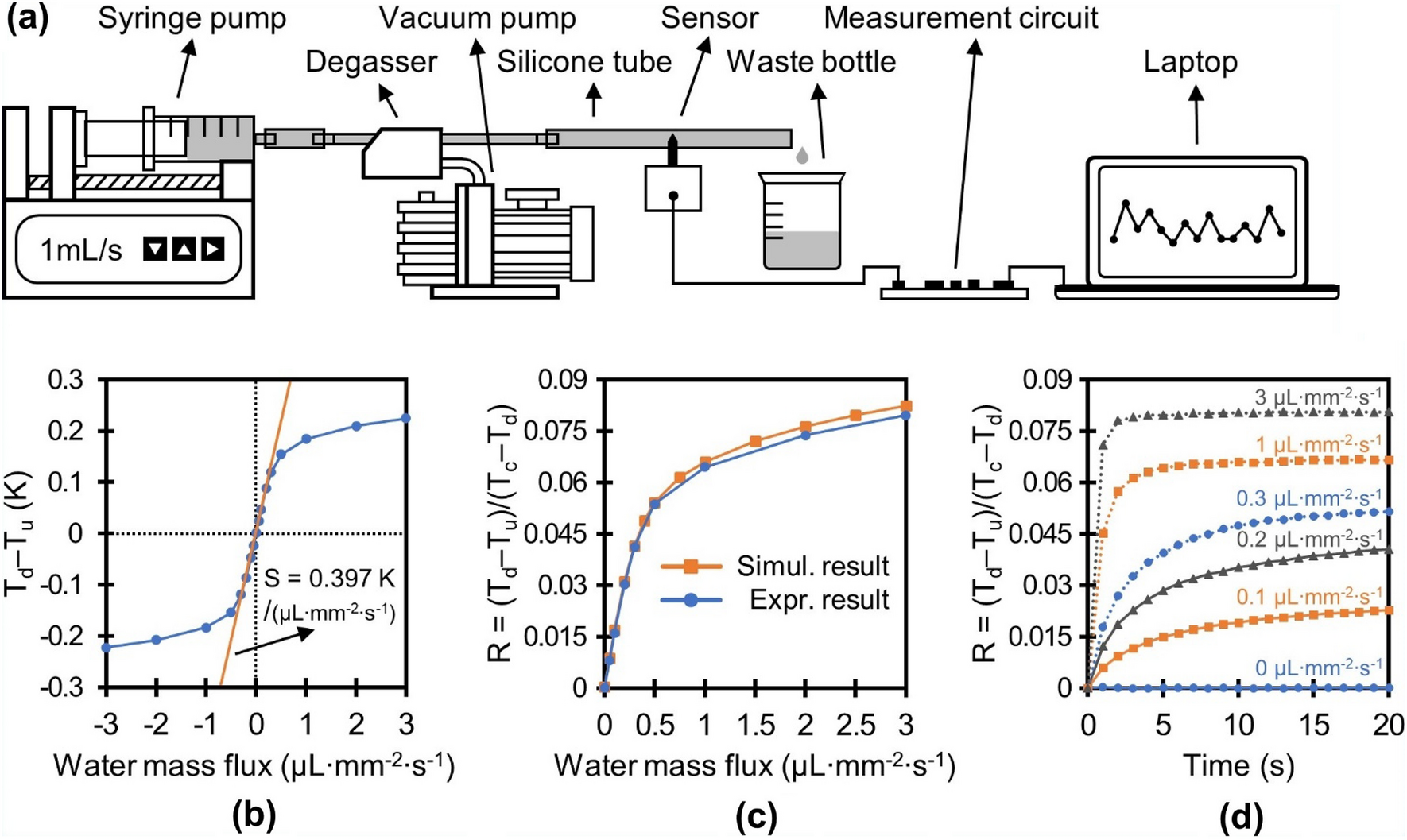

Experimental setup for the tube test and the results. (a) Schematic representation of the calibration setup. (b) Temperature difference at up and downstream thermometer at diverse mass fluxes. (c) Comparison of the sensor response between the results from the experiment and the simulation. (d) Time response of the sensor in the tube test.
