Figure 4

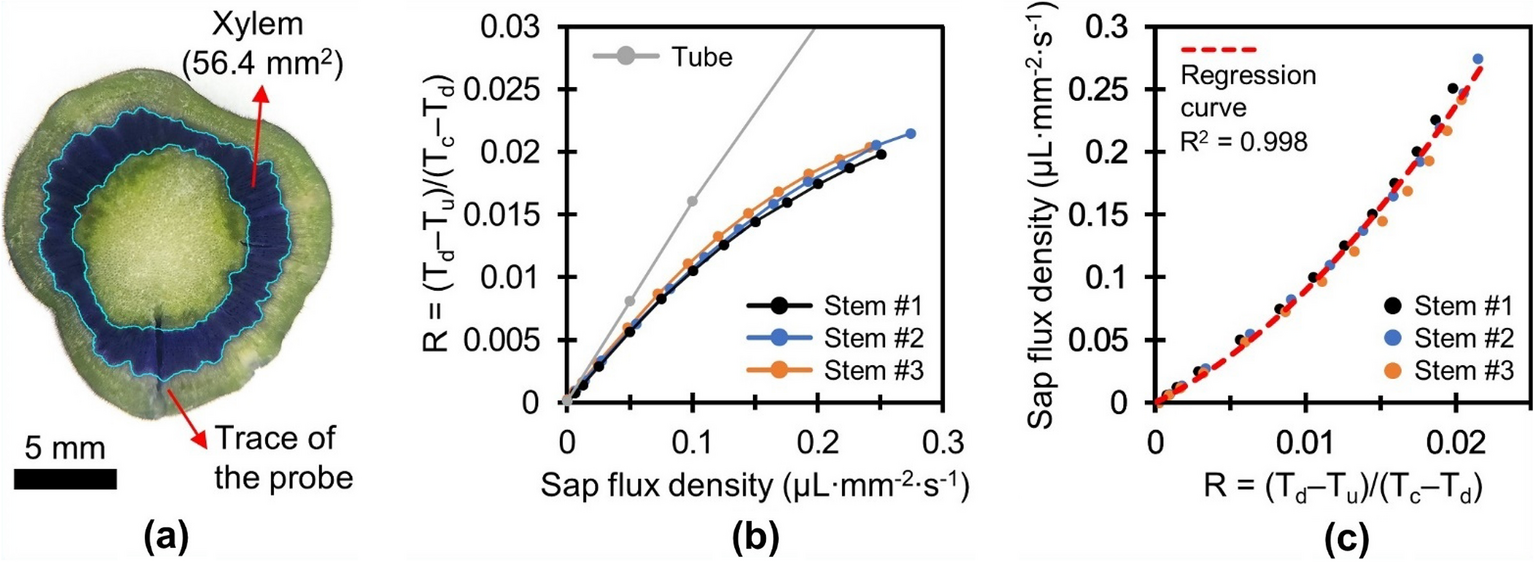

Stem calibration results and cross-sectional image of a tomato stem. (a) The stem perfused with 0.1 wt% crystal violet solution after calibration. Cyan lines indicate the boundary of the xylem. (b) Comparison of the calibration results for the tube and the stems. (c) Correlation between sensor response and SFD, fitted to a second-order polynomial model.
