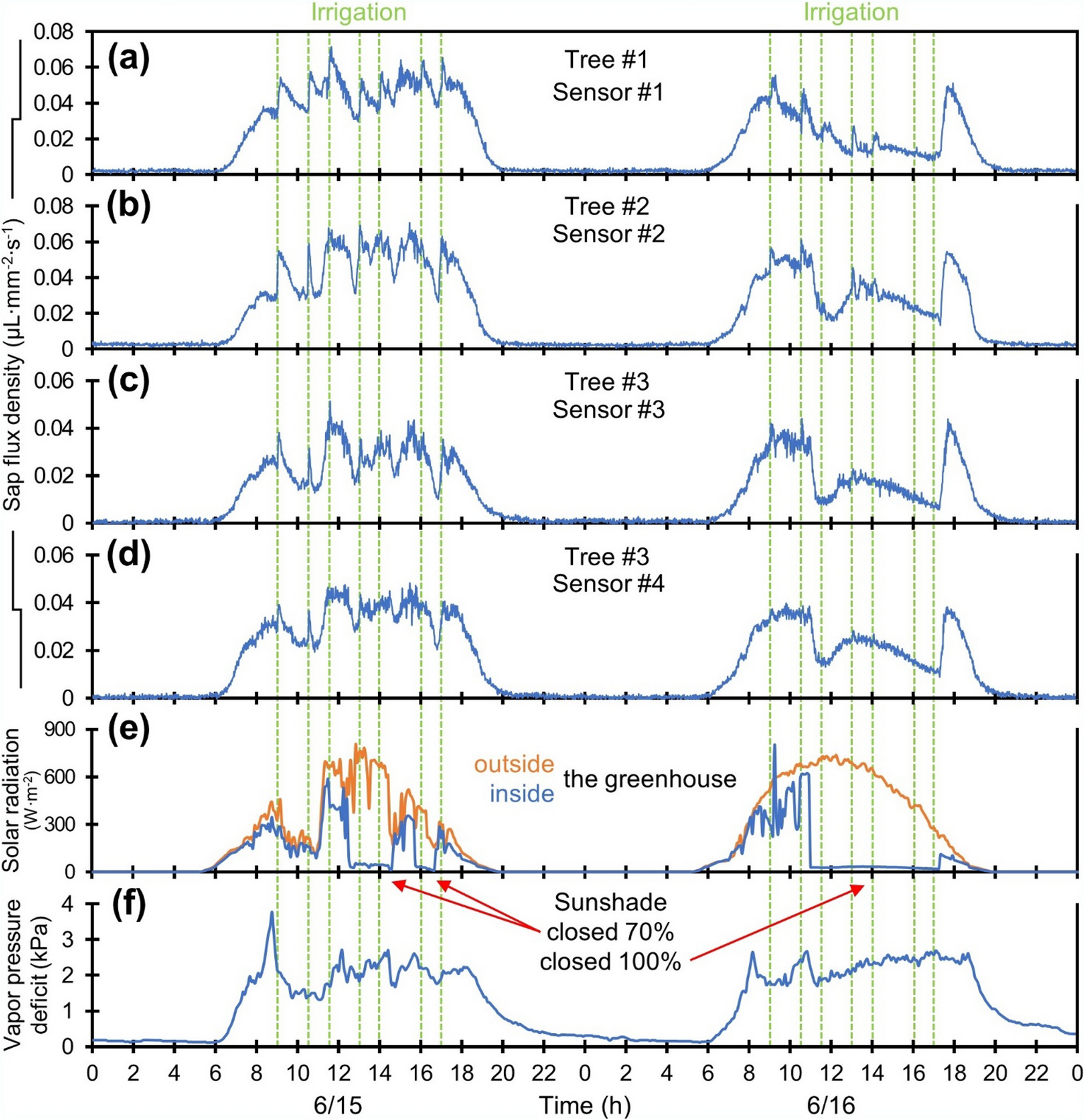

Figure 7

Enlarged field test results of four sensors for each (a) tree #1, (b) tree #2, and (c,d) tree #3 from 15th of June to 17th of June. (e) Solar radiation captured in and outside the greenhouse. (f) Vapor pressure deficit. Vertical green dotted lines mark the times irrigation begins at 9:00, 10:30, 11:30, 13:00, 14:00, 16:00 and 17:00.
