From: Oocyte maturation, fertilization, and embryo development in vitro by green and chemical iron oxide nanoparticles: a comparative study

Figure 5

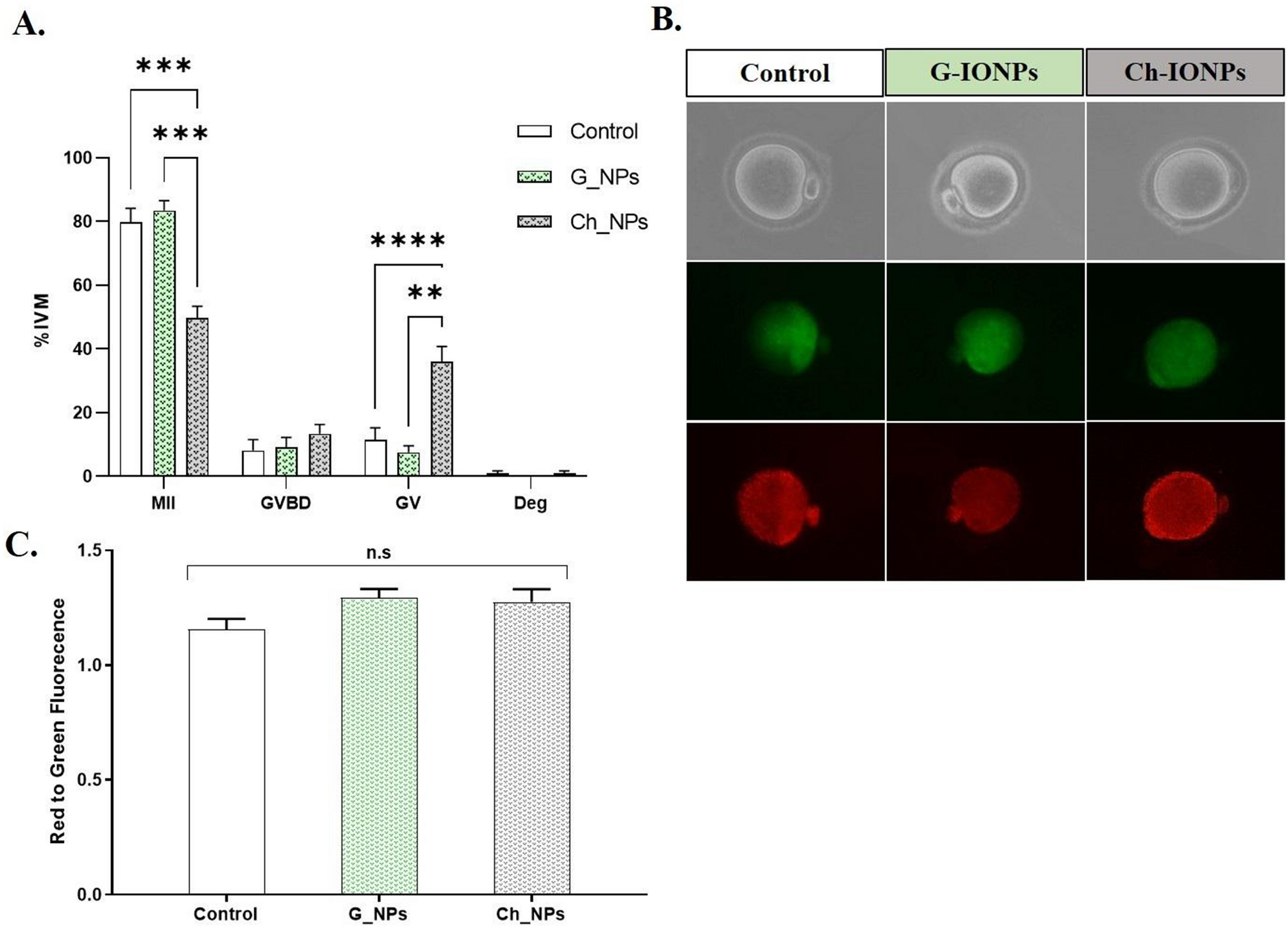

The MII oocyte quality analysis. (A) The rate of MII, GV, GVBD, and Deg oocytes in the Control, Ch-IONPs, and G-IONPs groups (****p < 0001, ***p < 0.001, **p < 0.01) (n = 5). (B) Mt membrane potential assessment for mouse MII oocytes in control, chemical, and green IONP groups. The data were shown with a mean ± SEM. ns means an insignificant difference. (C) The red-to-green fluorescence intensity and quantity (n = 5). G-IONPs green synthetized iron oxide nanoparticles, Ch-IONPs chemically synthetized iron oxide nanoparticles.
