Figure 6
From: Bio-chelate assisted leaching for enhanced heavy metal remediation in municipal solid waste compost

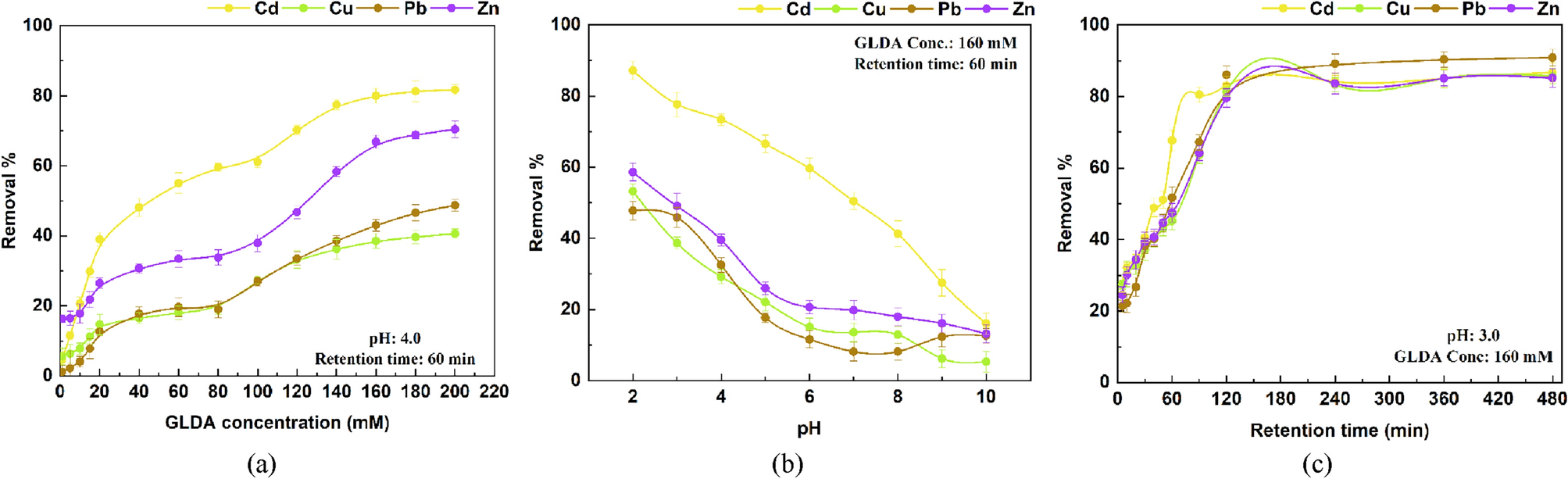

Leaching effect of (a) GLDA concentration, (b) pH, and (c) retention time on removal efficiencies of Cd, Cu, Pb, and Zn from MSW compost, respectively. Values reflect the mean ± standard deviation of three trials.
