Figure 5
From: Kinetic nitrogen isotope effects of 18 amino acids degradation during burning processes

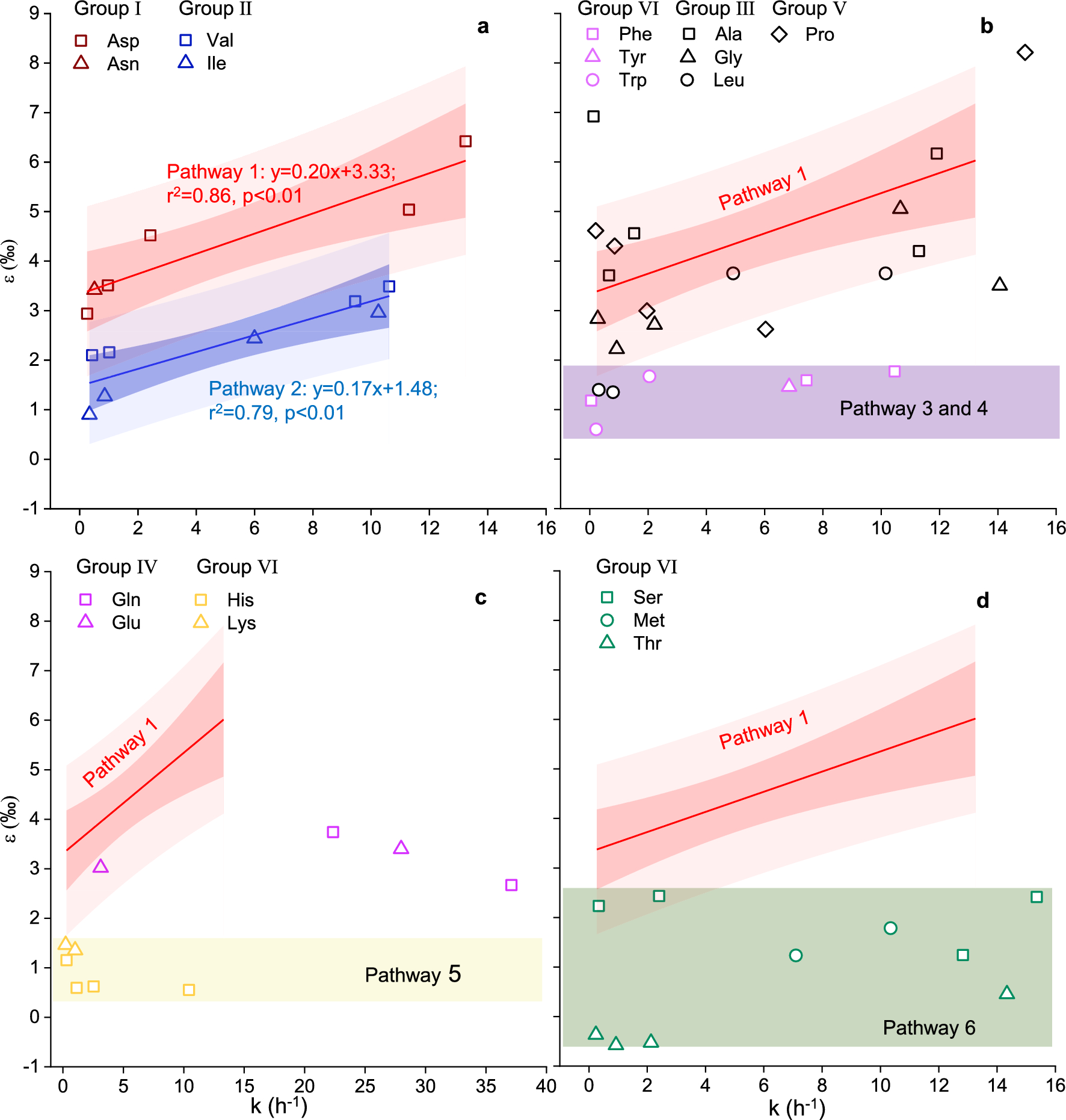

Correlation between ε (‰) values and degradation rate constants (k) for amino acids undergoing degradation via (a) Pathway 1 and Pathway 2, (b) Pathway 3 and Pathway 4, (c) Pathway 5, and (d) Pathway 6.
