Figure 8
From: Self-assembled monolayers of reduced graphene oxide for robust 3D-printed supercapacitors

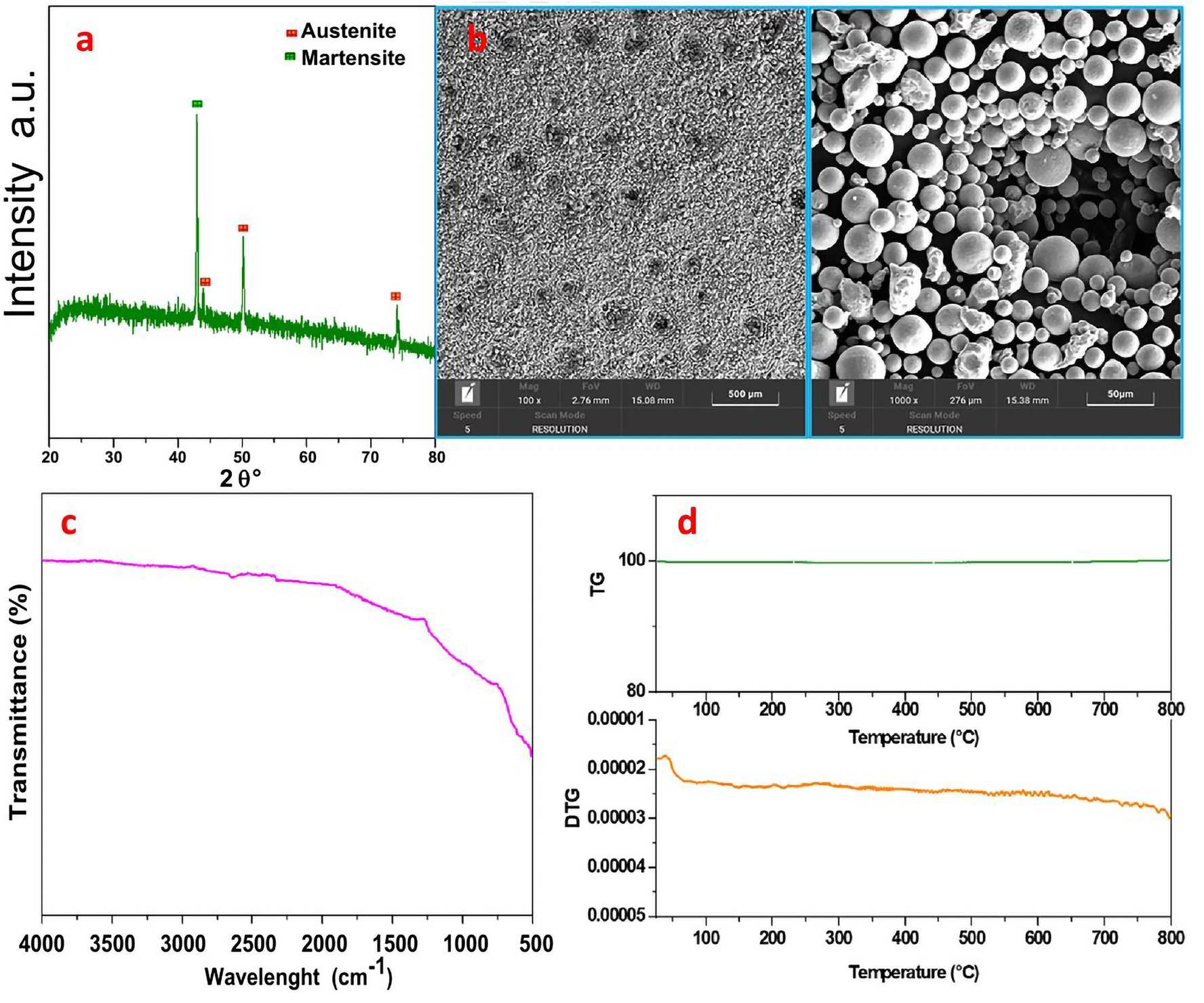

(a) X-ray diffraction pattern, (b) SEM images at different magnifications (scale bars: 500 μm, 50 μm), (c) FT-IR and (d) TG-DTG graphs under airflow of steel particles.
