Figure 6

From: Identification of hub genes associated with diabetic cardiomyopathy using integrated bioinformatics analysis

Figure 6

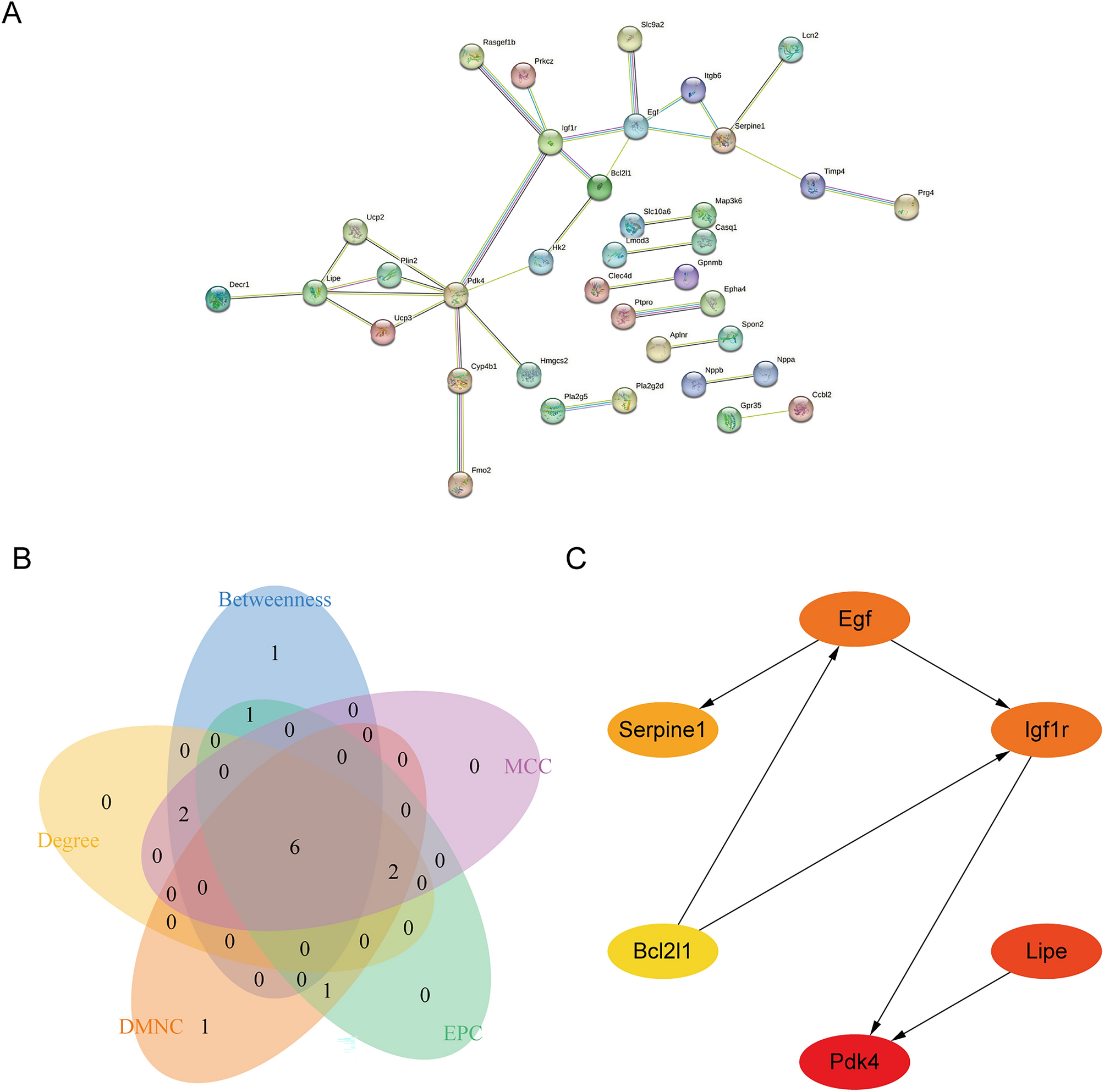

PPI network and identification of hub genes. (A) PPI network of the genes between DEG lists and turquoise module constructed by STRING. The nodes represent the genes. Edges indicate interaction associations between nodes. (B) Identification of 6 candidates for hub genes by four algorithms. (C) PPI network of the hub genes. PPI, protein–protein interaction; DEG, differentially expressed genes; STRING, Search Tool for the Retrieval of Interacting Genes.
