Figure 4

From: Facile synthesis of elastin nanogels encapsulated decursin for castrated resistance prostate cancer therapy

Figure 4

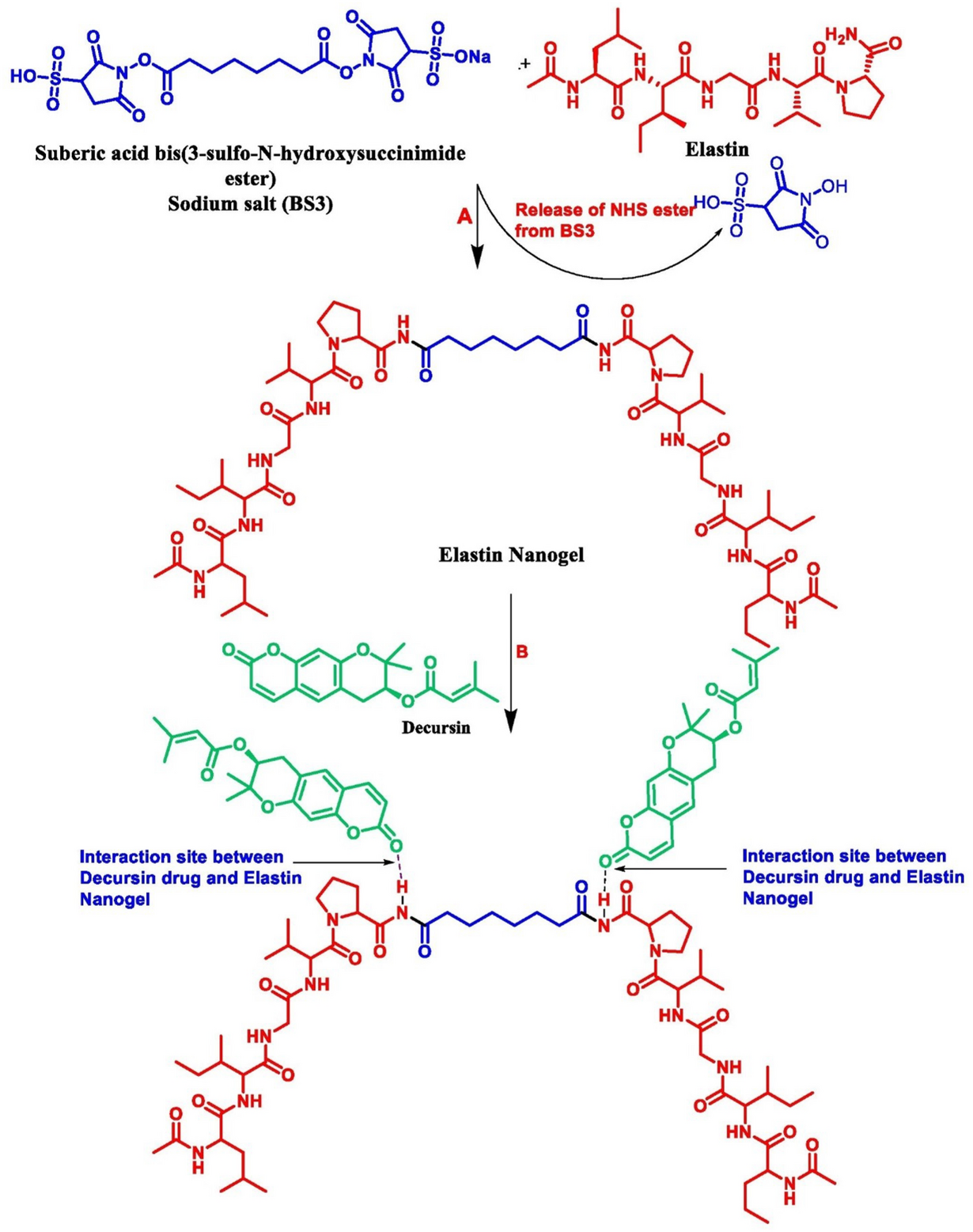

Shows the possible mechanism: At step (A) there occurs a reaction between Elastin and BS3 results in the formation of Elastin nanogel by the release of NHS ester in which BS3 acting as crosslinker between two Elastin moiety. At step (B) when Decursin is incorporated there is the possible Hydrogen bonding interaction of Decursin with the Elastin Nanogel at a particular interaction site as shown above.
