Figure 3

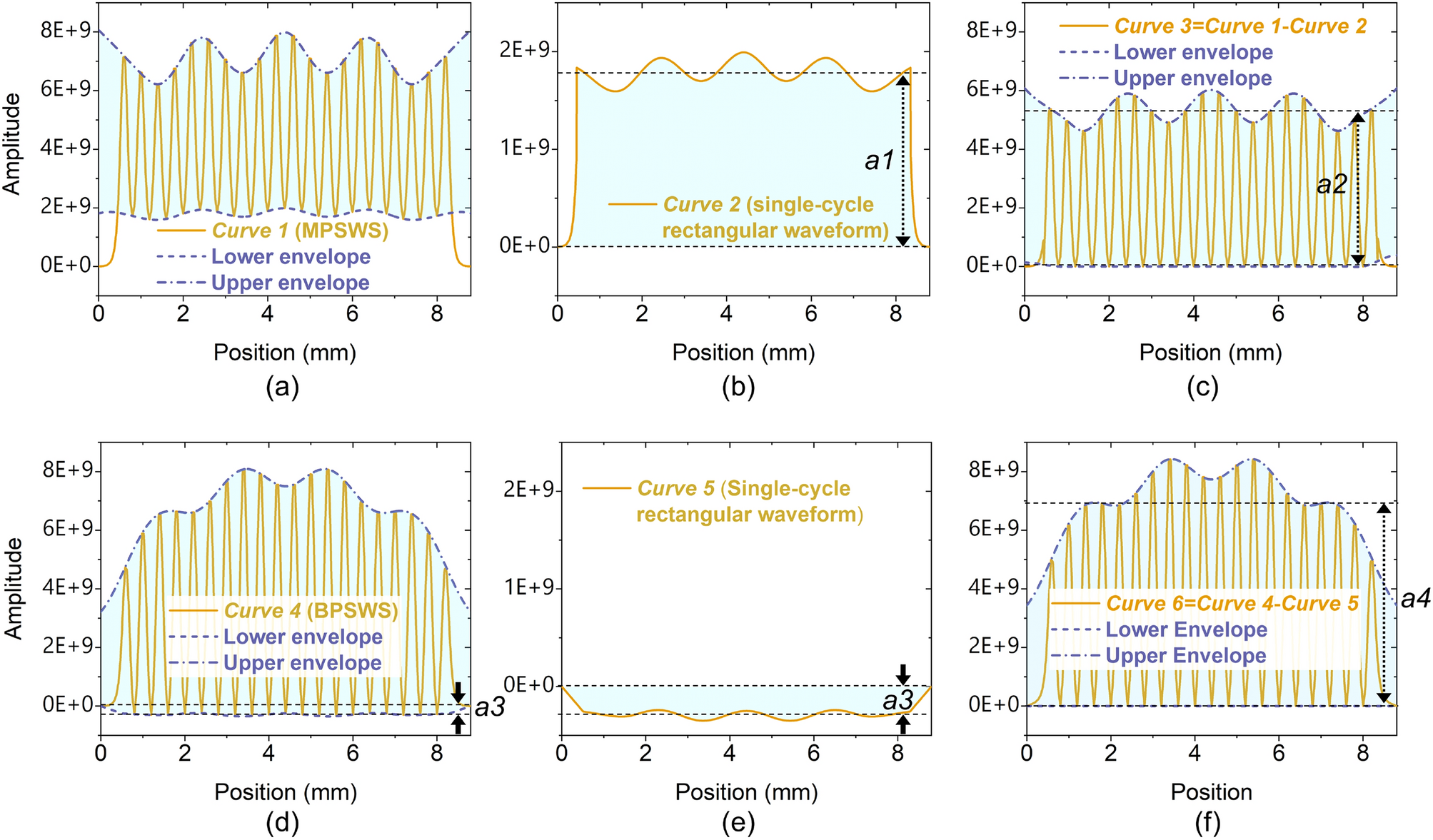

(a) Electric field distribution within the MPSWS, along with the amplitudes of (b) its square-wave and (c) its periodic pulse components; and (d) the electric field distribution curve for the BPSWS, with the amplitudes of (e) its square-wave and (f) its periodic pulse components. The energy capacity of the cavity is set at 1 J.
