Figure 14
From: Boosting piezoelectric properties of PVDF nanofibers via embedded graphene oxide nanosheets

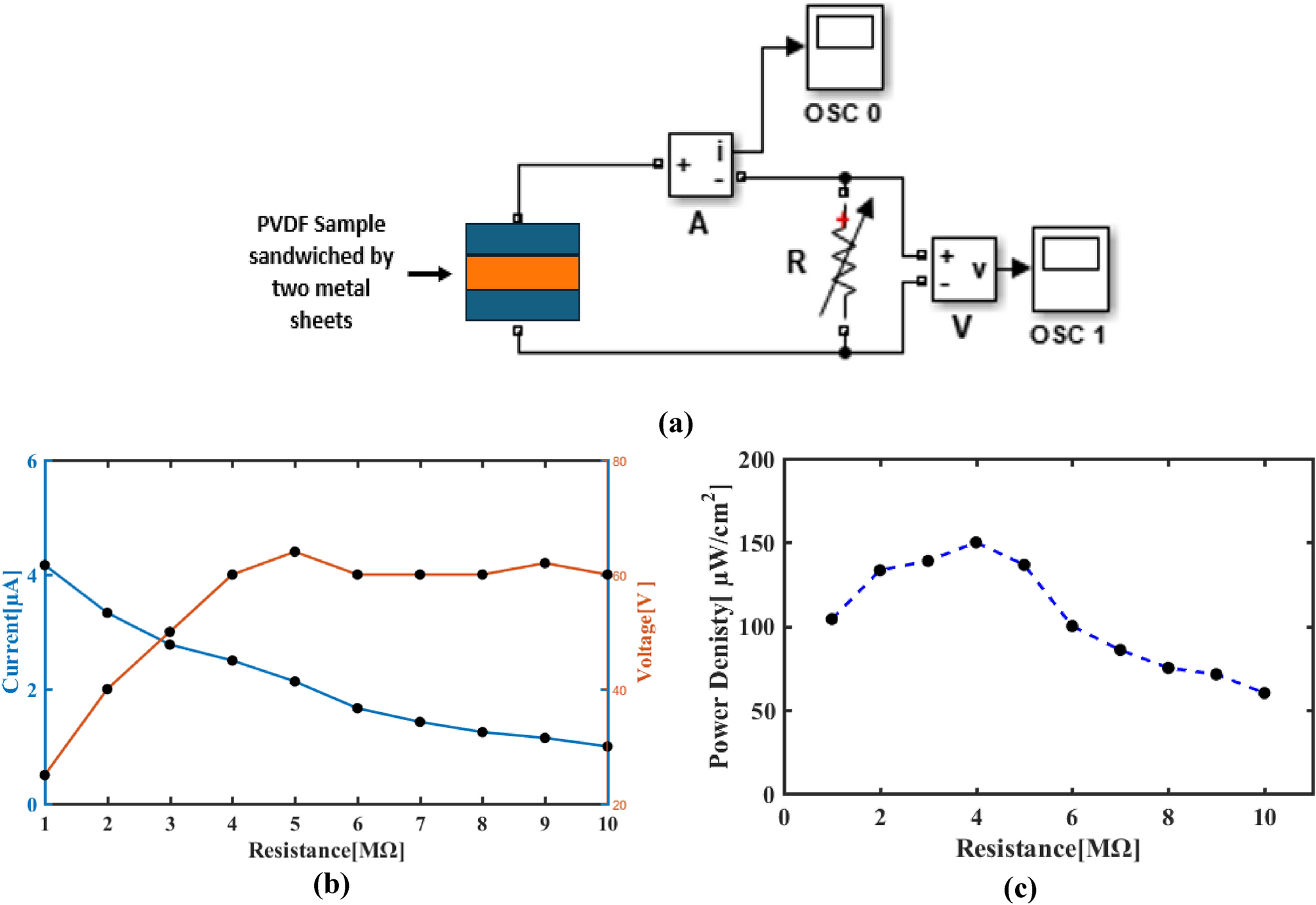

(a) Schematic circuit used to evaluate PVDF-GO 1.5 wt.% Ohmic behavior, (b) Voltage and current output as a function of load resistance, and (c) Power density as a function of load resistance.
