Figure 3
From: Unveiling a new oceanic anoxic event at the Norian/Rhaetian boundary (Late Triassic)

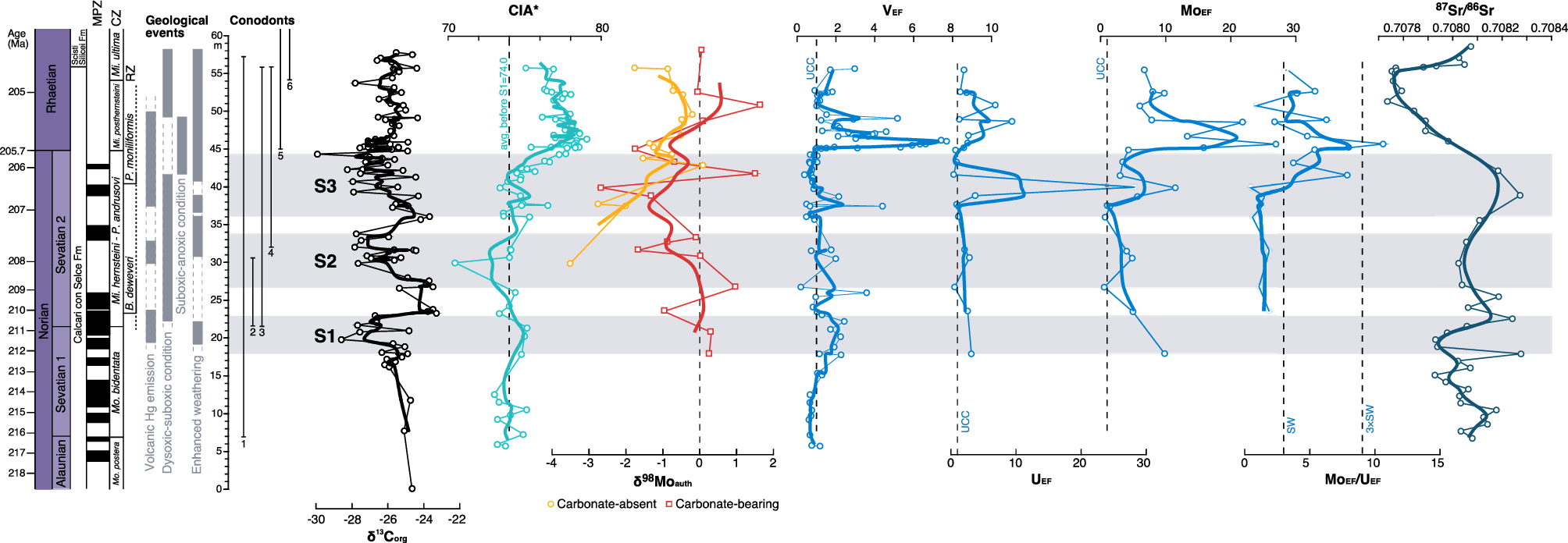

Geochemical profile of Pignola-Abriola section. Enrichment factors (EF) were calculated relative to UCC58,60. δ98Moauth for carbonate-absent is of Fe–Mn hydroxides and for carbonate-bearing is Fe–Mn hydroxides plus carbonate. Strontium curve modified after64. A description of the taxonomic range of conodonts is as follows: 1. Mockina bidentata; 2. Parvigondolella andrusovi; 3. Misikella hernsteini; 4. Mi. hernsteini/posthernsteini; 5. Mi. posthernsteini; 6. Mi. ultima.
