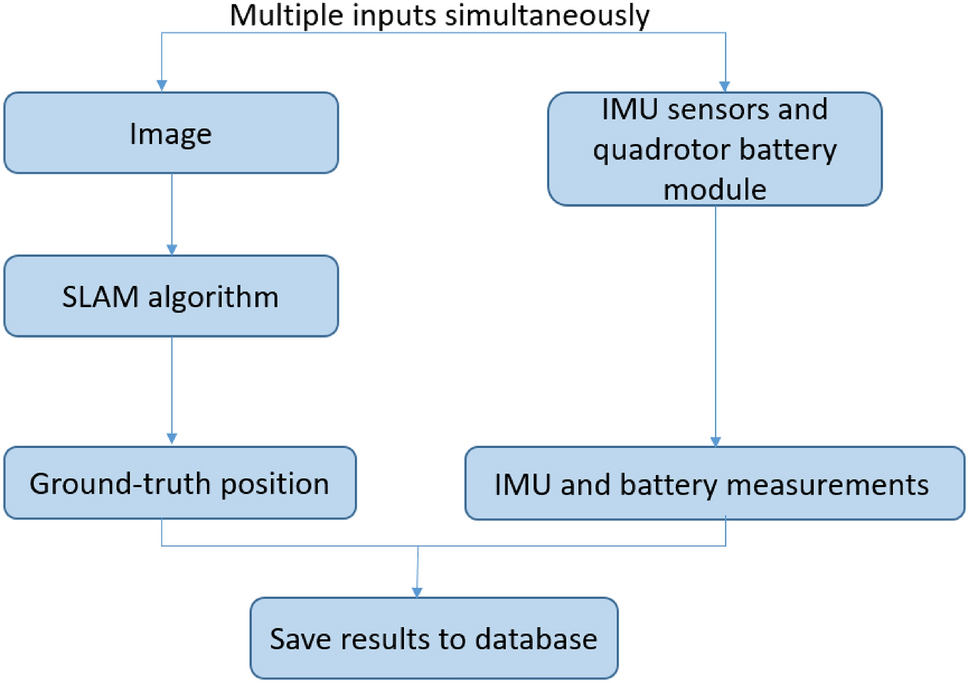

Figure 6
From: Quadrotor with wheels: design and experimental evaluation
System architecture: two processes occur simultaneously. The first one uses the SLAM algorithm to output an accurate location. The second outputs IMU and battery measurements. The information is stored in a database.
