Figure 3 | Scientific Reports

Figure 3

From: LILRB4 knockdown inhibits aortic dissection development by regulating pyroptosis and the JAK2/STAT3 signaling pathway

Figure 3

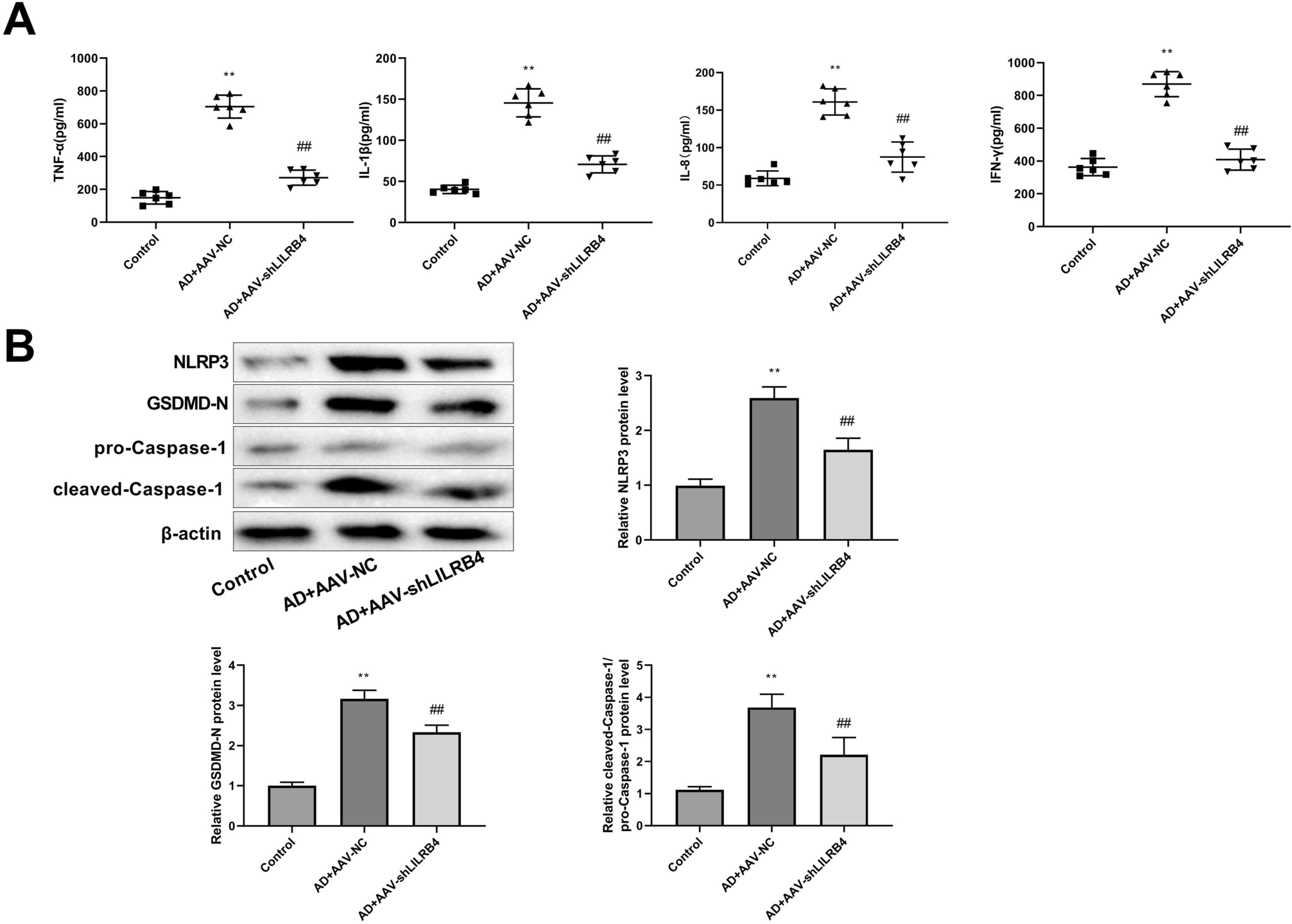

LILRB4 knockdown inhibited pyroptosis in AD mice (n = 6). (A) ELISA was performed to detect the levels of pro-inflammatory cytokines, including TNF-α, IL-1β, IL-8, and IFN-γ, in the serum of mice in each group. (B) Western blot was performed to measure the expression levels of pyroptosis-associated proteins, including NLRP3, GSDMD-N, and cleaved-caspase-1, in AD model mice. Data are represented as mean ± standard deviation (SD) of six mice. Unpaired Student's t test: **P < 0.01 versus Control group, ##P < 0.01 versus AD + AAV-NC group.
