Figure 11

From: Experimental study on soil improvement by electrochemical injection of calcium chloride solutions with time interval

Figure 11

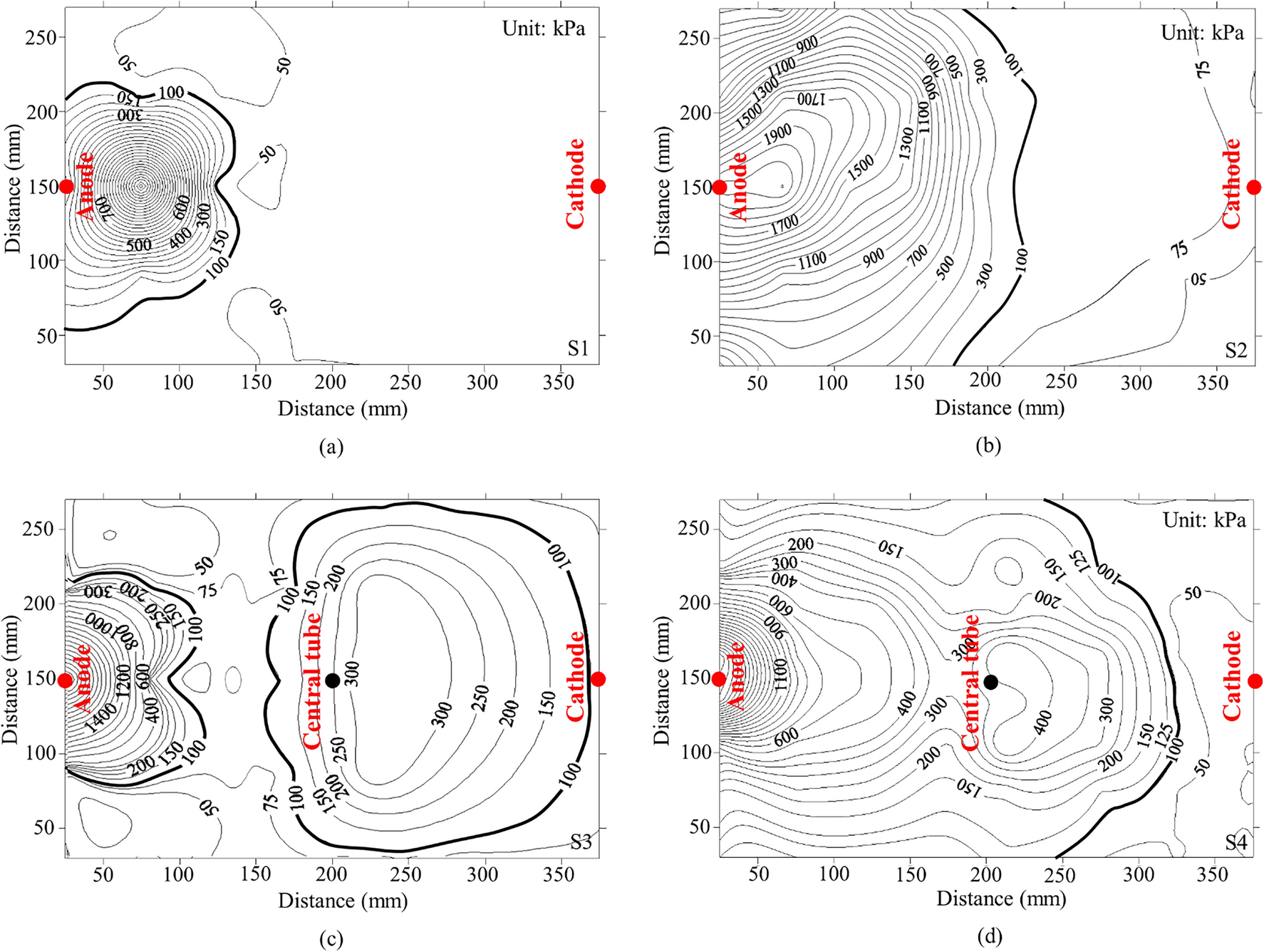

Penetration resistance contour plot after treatment (a) S1 (pure electroosmotic flow) (b) S2 (electroosmotic flow with injection through the anode) (c) S3 (electroosmotic flow with simultaneous injection through both the anode and central tube) and (d) S4 (electroosmotic flow with injection through the anode followed by injection through the central tube with a 12.5-h interval between injections).
