Figure 2

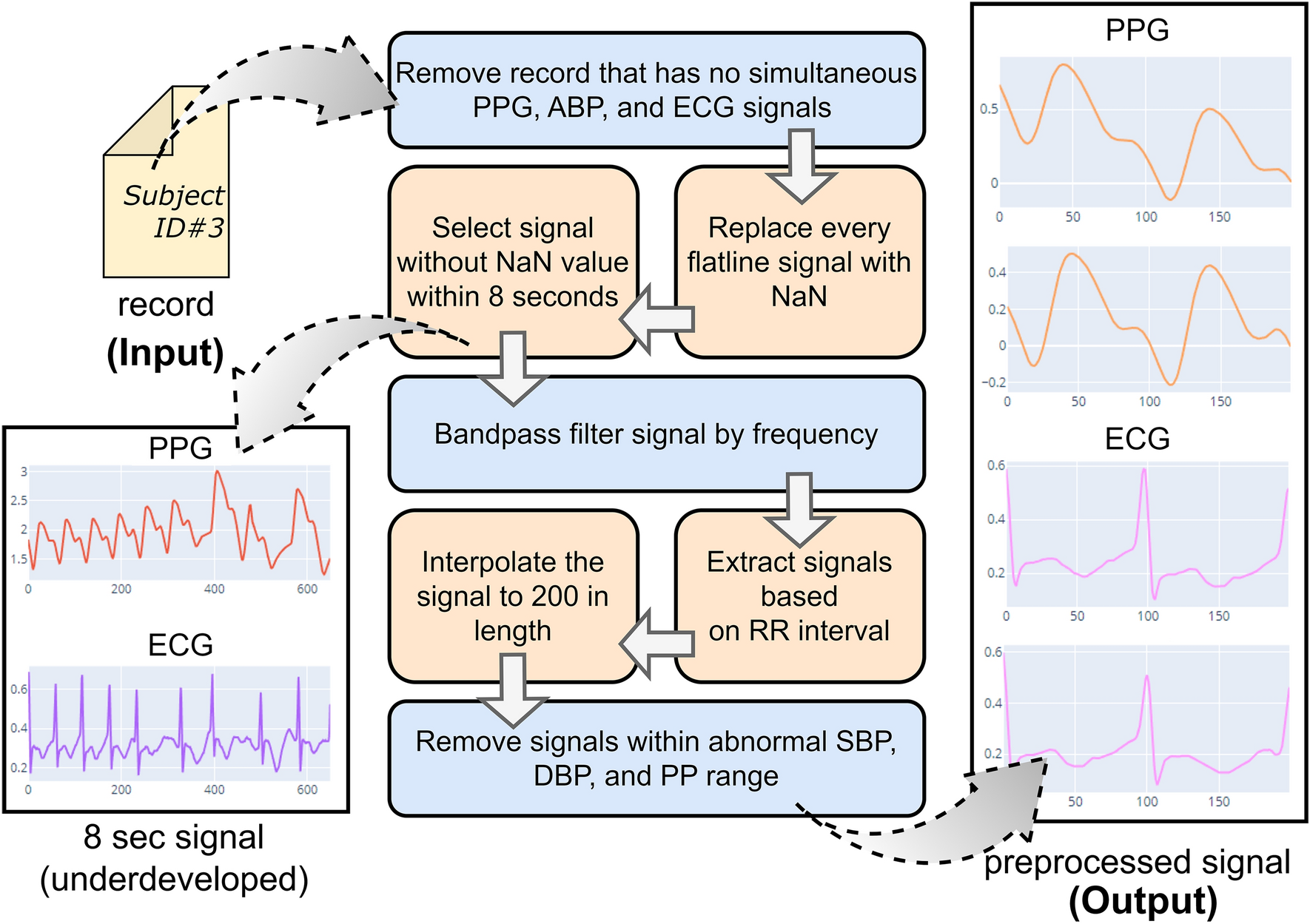

Preprocessing of the MIMIC III dataset used in our experiments. The figure shows the inside of the preprocessing module for extracting PPG and ECG signals. It consists of 7 consecutive blocks, with each block depicting a particular function.
